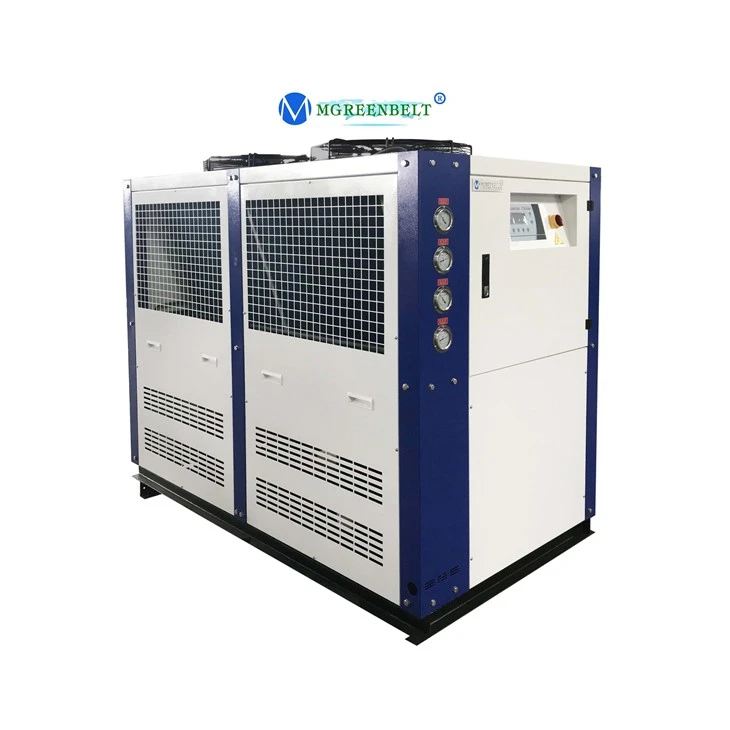

Fully Automatic Water Chiller System 20HP 55kW Industrial Air Cooled Water Chiller

以下是你提供内容的英文翻译,适合用于产品介绍,宣传手册或网站说明：

---

Mgreenbelt Air-Cooled Industrial Chillers are widely used in industries such as plastics, electronics manufacturing, electroplating, pharmaceuticals and chemicals, ultrasonic cooling, and printing. They precisely control the temperatures required in modern industrial mechanized production, significantly improving production efficiency and product quality.

Air-cooled industrial chillers do not require a cooling tower. With easy operation, thoughtful design, excellent quality, and a complete range of models, they are an essential companion for modern industrial production.

Chiller Features:

The main unit uses brand-new imported compressors from well-known U.S. and Japanese brands, featuring built-in safety protection, low noise, energy efficiency, and long-lasting performance.

Electrical components adopt original Schneider products from the international brand to ensure stable machine operation and long service life.

Equipped with high-flow, high-efficiency, and durable water pumps from renowned Italian manufacturers.

Fitted with a high-precision imported digital temperature controller for accurate water temperature control within ±1°C, with a settable temperature range from 5°C to 35°C. It includes self-diagnosis capabilities and automatically detects faults, displaying working and error conditions in Chinese/English for easy operation and management.

Water-cooled models use shell-and-tube condensers with internally threaded copper tubes for excellent heat exchange. Air-cooled models use finned condensers with rows of steel pipes, made using advanced mechanical tube-expanding technology and heat exchanger production lines to ensure high performance and efficiency.

Refrigerants such as R410A or R407C are available, which are environmentally friendly and compliant with local ozone protection regulations.

Special power configurations can be customized based on the power supply requirements of different countries and regions.

---





Model	MG-20CD
Max. power consumption	19.63kW
Compressor power	16.26kW
Nominal cooling capacity	55.3kW
Refrigerant	R407C/R407C/R22
Outlet Water Temperature	5°C to 35°C
Precision	±1℃
Pump power	1.5kW
Inlet and outlet	DN40
N.W.	850KG
Dimension	2050*990*1865mm



Model: MG-30CT

Nominal Cooling Capacity: 84kW

Total Input Power: 30.2kW

Power Voltage: 3Phase/380V/50Hz

Outlet Water Temperature: 5℃ to 25℃

Temperature Control Accuracy: ±1K

Compressor Type: Hermetic scroll type

Refrigerant Type: R407C

Condenser Type: Air cooled aluminum fin type

Evaporator Type: Shell and tube
