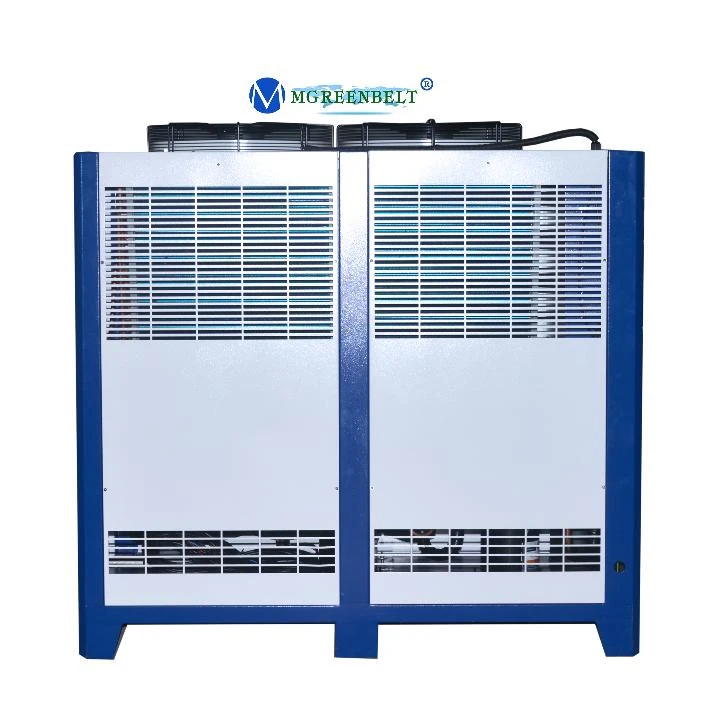

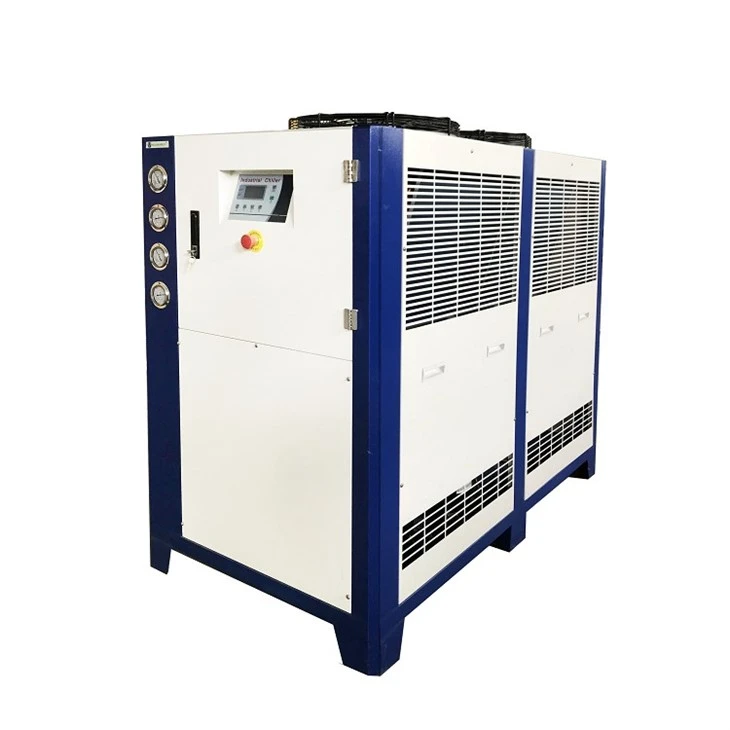

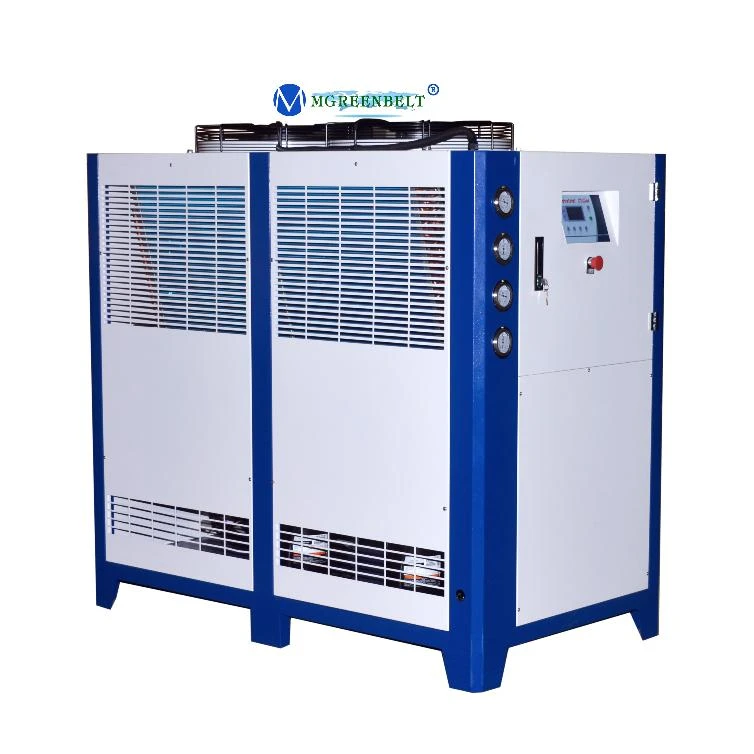

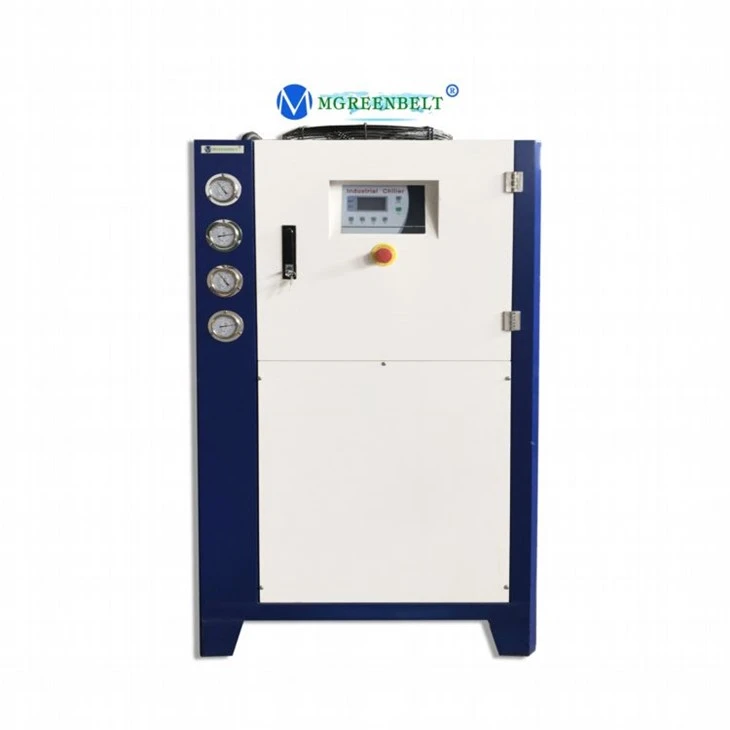

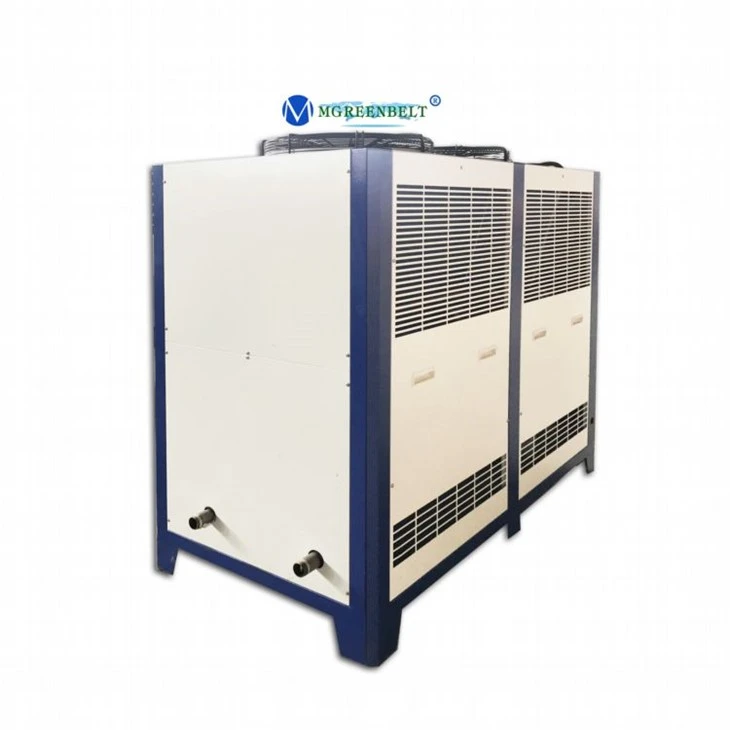

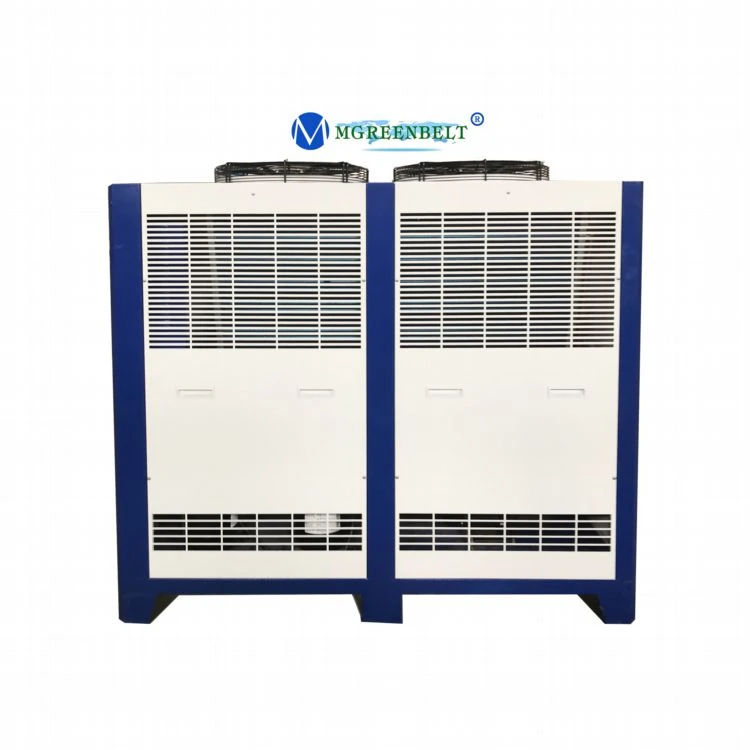

10hp Water Chiller
Refrigerant: R404A/R22/R407C
Power supply: 380V/50Hz
Cold water outlet temperature: 5 ℃ -35 ℃
Compressor type:Thermostatic expansion valve
Product Introduction
10hp water chiller is a device that uses 10 horsepower as a drive and uses refrigerant circulation to achieve heat transfer for cooling. It usually includes key components such as compressor, condenser, evaporator, expansion valve, etc.
Product Features
High Cooling Capacity: The device is driven by 10 horsepower and can cool down by 15°C in 3 minutes.
Energy-saving And High Efficiency: The device is equipped with a frequency conversion system and intelligent start-stop control, which saves 30% of electricity compared with traditional models.
Intelligent Control: The PLC touch screen of the device has a temperature control accuracy of ±0.5°C, can automatically match the load, and can be operated with one button.
Widely Adaptable: The device can be used in industrial scenarios such as cooling of injection molding machines, cooling of extrusion production lines, constant temperature control of molds, and heat dissipation of electronic components.
Product Parameters
●Cooling capacity: 28.5KW
●Compressor power: 9.05 kW
●Evaporator type: shell and tube/SS tank with coil
●Refrigerant: R22
●Input power: 3 phase, 380V/50Hz
●Temperature range: 5°C to 35°C
●Our 10hp water chiller uses Schneider and Siemens electrical components, has passed various safety certifications, and has reliable quality.
Specification
|
Model |
MG-3C |
MG-5C |
MG-25CD |
MG-30CT |
|
|
Cooling capacity |
Kcal/h |
7310 |
11524 |
55212 |
71896 |
|
kw |
8.5 |
13.4 |
64.2 |
83.6 |
|
|
Power |
kw |
3.47 |
5.05 |
24.48 |
30.2 |
|
Power input |
3PH-380V-50HZ |
||||
|
Refrigerant |
Type |
R22/R407C |
|||
|
Control |
Thermostatic expansion valve |
||||
|
Compressor |
Type |
Hermetic scroll type |
|||
|
kw Power |
2.81 |
4.1 |
9.79*2 |
8.13*3 |
|
|
Evaporator |
Type |
SS Tank with coil or Shell and tube |
|||
|
m³/h |
1.46 |
2.30 |
11.01 |
14.33 |
|
|
L |
55 |
80 |
360 |
530 |
|
|
Inlet/Outlet |
DN25 |
DN25 |
DN40 |
DN65 |
|
|
Condenser |
Type |
High efficiency hydrophilic aluminum foll finned type |
|||
|
kw Power |
0.29 |
0.58 |
1.4*2 |
0.937*3 |
|
|
Pump |
Type |
Centrigual water pump |
|||
|
kw Power |
0.37 |
0.37 |
1.5 |
3 |
|
|
m Lift |
24 |
24 |
20 |
22 |
|
|
Dimension |
mm L |
1100 |
1200 |
2050 |
2720 |
|
mm W |
570 |
600 |
990 |
1120 |
|
|
mm H |
1120 |
1200 |
1865 |
1800 |
|
|
Wight |
kg |
150 |
200 |
900 |
1150 |
Product Application
10hp water chiller can be used for cooling food processing equipment in food processing plants, maintaining constant temperature and humidity in pharmaceutical workshops, cooling precision equipment in the production of electronic components, and air conditioning and refrigeration in commercial places.
Customer site
RFQ
If you are interested in our 10hp water chiller, please provide the following information when inquiring:
● Required cooling capacity and temperature range
● Power supply voltage, frequency
● Required refrigerant type
● Other specific requirements (if any)
Our team will provide you with competitive quotes and professional technical support to ensure that you get the cooling solution that best suits your needs.
