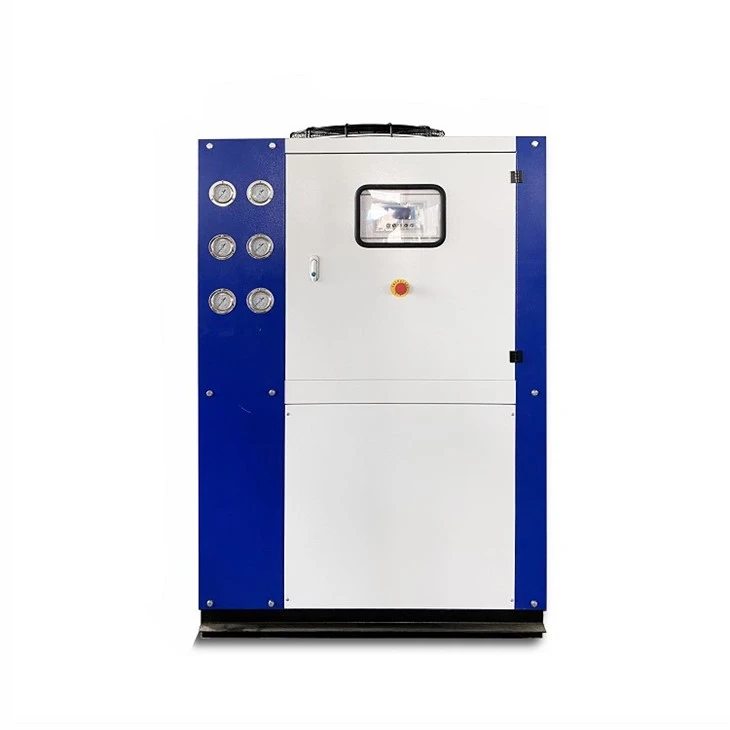

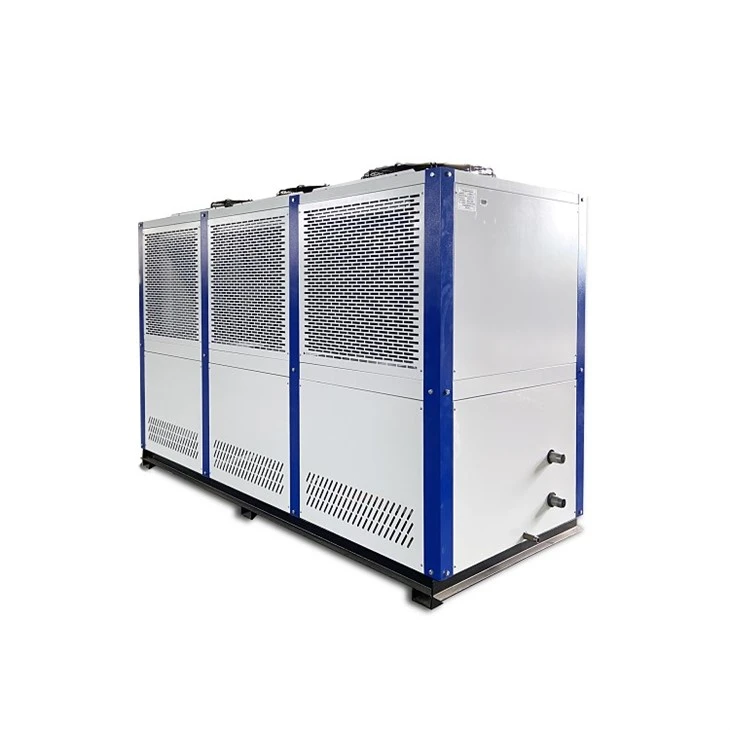

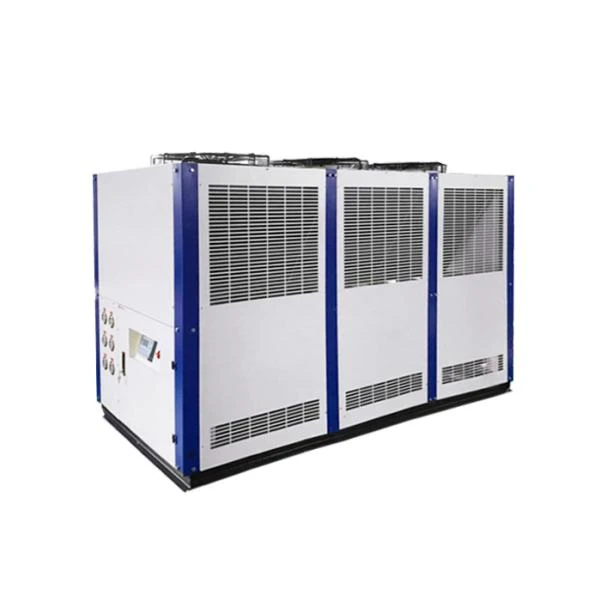

Industrial Brewery Chiller Unit
Refrigerant: R404A/R22/R407C
Power supply: 380V/50Hz
Cold water outlet temperature: -5 ℃ -35 ℃
Water pump flow rate: 6.3-14.33m ³/ h
Product Description
Industrial brewery chiller unit is a device specially designed to provide a stable low temperature environment for the beer brewing process. It is widely used in the fermentation, filtration, filling and other links in beer production.
Specification Sheet
|
Air cooled scroll chiller |
||||||
|
Model |
MG-12CD |
MG-15CD |
MG-20CD |
MG-30CD |
||
|
Cooling capacity |
0℃ |
kw |
24.8 |
27.2 |
42.2 |
63.3 |
|
-5℃ |
kw |
21 |
22.8 |
35 |
52.5 |
|
|
Power |
kw |
11.51 |
12.84 |
19.29 |
29.69 |
|
|
Power input |
3PH-380V-50HZ |
|||||
|
Compressor |
Type |
Hermetic scroll type |
||||
|
Power |
kw |
4.9*2 |
5*2 |
7.96*2 |
7.96*3 |
|
|
Refrigerant |
Type |
R22/R407C |
||||
|
Control |
Thermostatic expansion valve |
|||||
|
Evaporator |
m³/h Flow |
0℃ |
4.70 |
5.15 |
8.00 |
11.99 |
|
-5℃ |
4.32 |
4.69 |
7.20 |
10.80 |
||
|
Capacity |
L |
200 |
275 |
360 |
530 |
|
|
Inlet/Outlet |
DN32 |
DN40 |
DN40 |
DN65 |
||
|
Condenser |
Type |
High efficiency hydrophilic aluminum foll finned type |
||||
|
kw Power |
0.58*2 |
0.67*2 |
0.937*2 |
0.937*3 |
||
|
Pump |
Type |
Centrigual water pump |
||||
|
Power |
kw |
0.55 |
1.5 |
1.5 |
3 |
|
|
lift |
m |
20 |
20 |
20 |
22 |
|
|
Protection System |
Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection. |
|||||
|
Dimension |
L |
mm |
1560 |
1800 |
2050 |
2720 |
|
W |
mm |
840 |
900 |
990 |
1120 |
|
|
H |
mm |
1530 |
1660 |
1740 |
1800 |
|
|
Weight |
Kg |
500 |
750 |
850 |
1150 |
|
Product Features
Efficient Refrigeration: The industrial brewery chiller unit is equipped with an efficient scroll compressor with a COP value of more than 3.8, strong cooling capacity, and can quickly meet the cooling needs of beer brewing.
Energy Saving And Consumption Reduction: It uses an efficient shell and tube heat exchanger, which increases the heat exchange efficiency by 20%. With the intelligent frequency conversion technology, the energy consumption is reduced by more than 15%.
Intelligent Control: The machine is equipped with a PLC intelligent control system with a temperature control accuracy of ±0.5℃, which realizes fully automatic operation and real-time monitoring of equipment status.
Packaging and Shipping
The chiller unit is packaged in a standard plywood case to ensure safe transportation and handling. We offer a variety of shipping options including air, sea and land to suit your specific needs and requirements.
Frequently Asked Questions
Q: How does an industrial brewery chiller unit work?
A: The compressor first compresses the refrigerant, which absorbs the heat in the beer production process when it circulates, and then releases the heat through the condenser to achieve a cooling effect.
Q: In which links are chillers mainly used in breweries?
A: In breweries, chillers are mainly used in key links such as wort cooling, fermentation tank temperature control, filtration process cooling, and beer cooling before packaging.
Q: How to clean the condenser of a chiller?
A: When cleaning the condenser, the operator must first stop the machine, flush the condenser pipe with a special cleaning agent, remove scale and impurities, and then rinse it with clean water.
Q: What should be paid attention to when installing a chiller?
A: When installing a chiller, the installer must ensure that the unit is placed horizontally, leave space for maintenance, the connected pipes must be well sealed, and the electrical circuits must comply with safety regulations.
Q: What should be included in the daily inspection of the chiller?
A: During routine inspections of chillers, inspectors should check the operating temperature and pressure of the unit, see if there are any leaks in the pipeline, listen to the equipment for any strange noises, and record the operating data.
