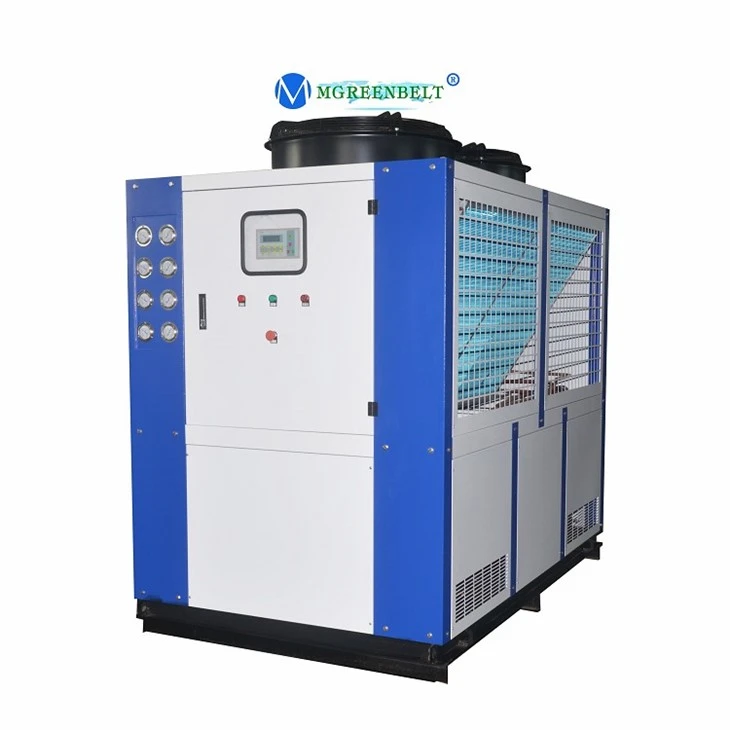

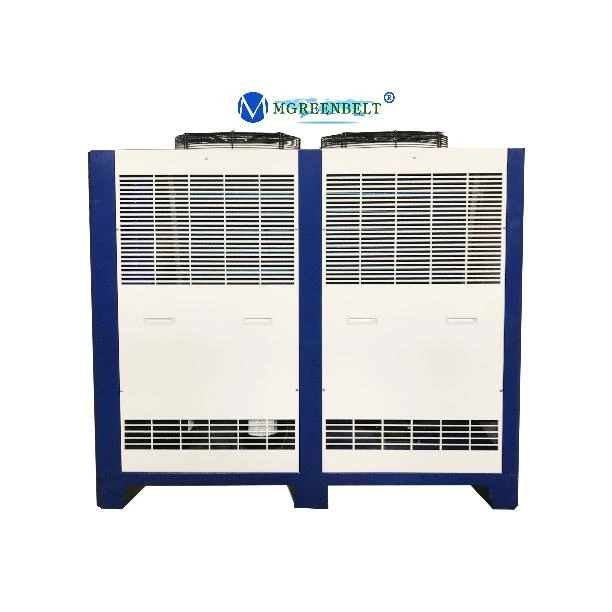

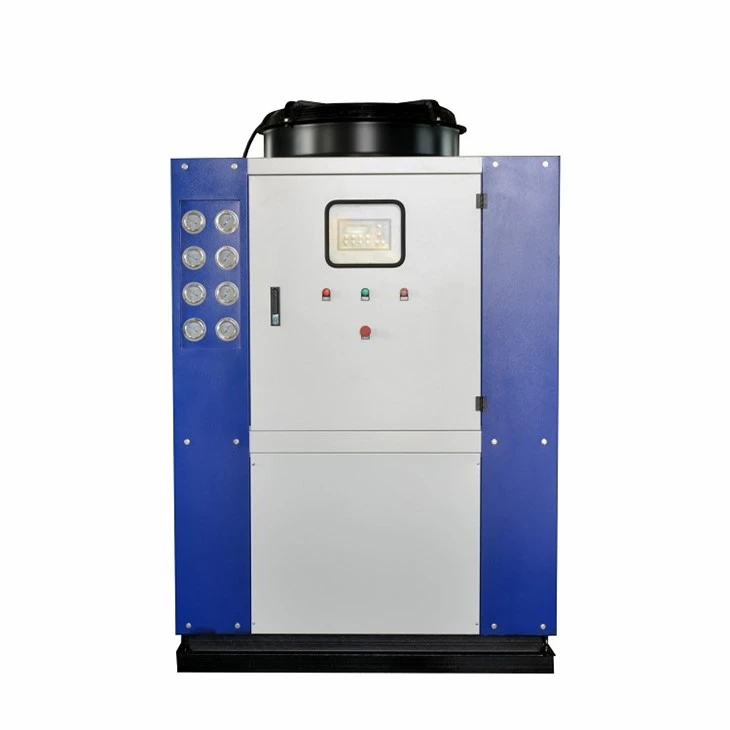

Small Industrial Chiller System
Refrigerant: R404A/R22/R407C
Power：5.05-49.96kw
Cold water outlet temperature:- 5 ℃ -35 ℃
Evaporator Inlet/outlet:DN25/DN32/DN40/DN65/DN80
Product Description
Small industrial chiller system is a kind of equipment that provides stable low-temperature cooling for industrial production processes. It is widely used in many industrial fields such as electronics, plastics, and food processing.
Specification Sheet
|
Air cooled scroll chiller |
|||||||
|
Model |
MG-15CD |
MG-20CD |
MG-30CT |
MG-40CF |
|||
|
Cooling capacity |
0℃ |
kw |
16.6 |
27.4 |
41.1 |
54.8 |
|
|
-5℃ |
kw |
13.5 |
21.3 |
31.5 |
42.6 |
||
|
Power |
kw |
14.84 |
21.61 |
33.17 |
42.48 |
||
|
Power input |
3PH-380V-50HZ |
||||||
|
Compressor |
Type |
Hermetic scroll type |
|||||
|
Power |
kw |
6*2 |
9.12*2 |
9.12*3 |
9.12*4 |
||
|
Refrigerant |
Type |
R22/R407C |
|||||
|
Control |
Thermostatic expansion valve |
||||||
|
Evaporator |
m³/h Flow |
0℃ |
3.32 |
5.48 |
8.22 |
10.96 |
|
|
-5℃ |
2.70 |
4.26 |
6.30 |
8.52 |
|||
|
Capacity |
L |
DN40 |
DN40 |
DN65 |
DN65 |
||
|
Inlet/Outlet |
3.32 |
5.48 |
8.22 |
10.96 |
|||
|
Condenser |
Type |
High efficiency hydrophilic aluminum foll finned type |
|||||
|
kw Power |
0.67*2 |
0.937*2 |
0.937*3 |
1.5*2 |
|||
|
Pump |
Type |
Centrigual water pump |
|||||
|
Power |
kw |
1.5 |
1.5 |
3 |
3 |
||
|
lift |
m |
20 |
20 |
22 |
21 |
||
|
Protection System |
Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection. |
||||||
|
Dimension |
L |
mm |
1800 |
2050 |
2720 |
2450 |
|
|
W |
mm |
900 |
990 |
1120 |
1400 |
||
|
H |
mm |
1660 |
1740 |
1800 |
2110 |
||
|
Weight |
Kg |
750 |
850 |
1150 |
1350 |
||
Product Features
High Efficiency And Energy Saving: The small industrial chiller system is equipped with a high-efficiency compressor, which has a refrigeration efficiency that is more than 15% higher than that of ordinary units. Coupled with the high-efficiency heat exchange copper tube, it can quickly achieve the cooling effect.
Intelligent Temperature Control: Equipped with a high-precision temperature sensor and an intelligent control system, the temperature control accuracy can reach ±0.5℃, which can keep the cooling temperature stable for a long time and meet the needs of precision production.
Low Noise Operation: It uses a noise-reducing fan and a shock-absorbing device, and the operating noise is less than 65 decibels.
Wide Application: It is suitable for multiple industrial fields such as electronics, plastics, and food, providing stable cooling for equipment, materials, etc.
Packaging and Shipping
LCL: Protect with plastic foam and then pack in wooden crates.
FCL: If the equipment can be packed in a 20" or 40" container, plastic foam packaging and wooden pallets will be used.
Frequently Asked Questions
Q: What is the working principle of the small industrial chiller system?

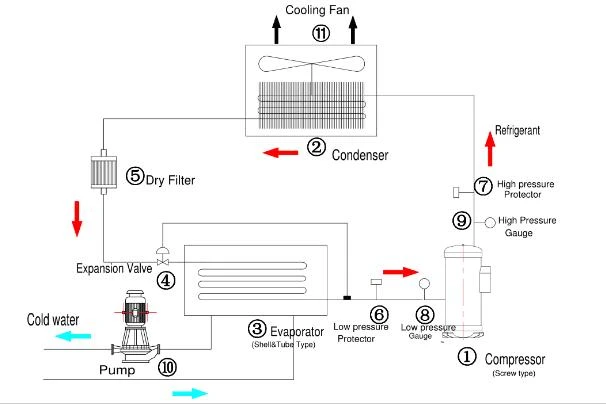

A: The compressor first compresses the refrigerant, and the refrigerant releases heat to become liquid in the condenser, then passes through the expansion valve to reduce pressure, and absorbs heat to become gas in the evaporator, thus circulating the cooling medium.
Q: How to clean the condenser of the chiller?
A: First stop the machine, disconnect the power supply, and use a high-pressure water gun to rinse the copper tube of the condenser. If there is stubborn dirt, remove it and wash it, then soak it in a special cleaning agent and rinse it clean.
Q: What are the requirements for the environment when installing the unit?
A: The installation place must be well ventilated, away from heat sources and dust, the ground must be flat and able to bear weight, there must be enough space for maintenance around, and the temperature must be kept between 4 and 40℃.
Q: What parts should be checked for daily maintenance?
A: During daily maintenance, check the sound of the compressor running, whether the filter is blocked, whether the fan is running normally, whether there is enough refrigerant, and whether there are any leaks in the pipeline.
Q: What should be paid attention to when connecting the pipeline during installation?
A: Special tools are required to connect pipes. The joints must be sealed tightly to prevent leakage. The pipes must be well insulated to reduce cold loss, and the slope must be reasonable to facilitate drainage.
