Precision Temperature Control 10hp Air Cooled Scroll Water Chiller Injection Molding

This is high quality low noise precision temperature control UL certificate air cooled scroll water chiller for injection molding with one year warranty

Send Inquiry

Product Introduction

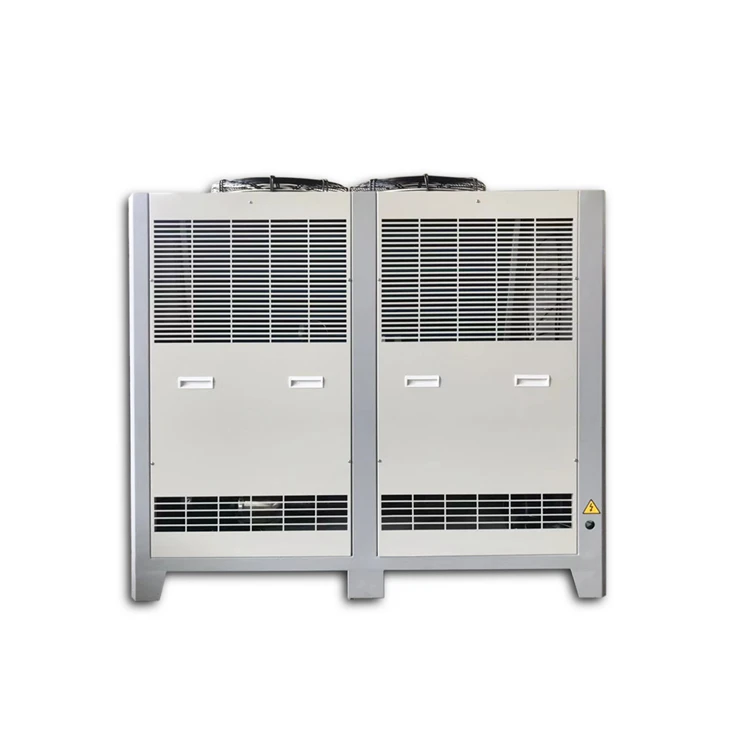

Precision Temperature Control 10hp Air Cooled Scroll Water Chiller Injection Molding

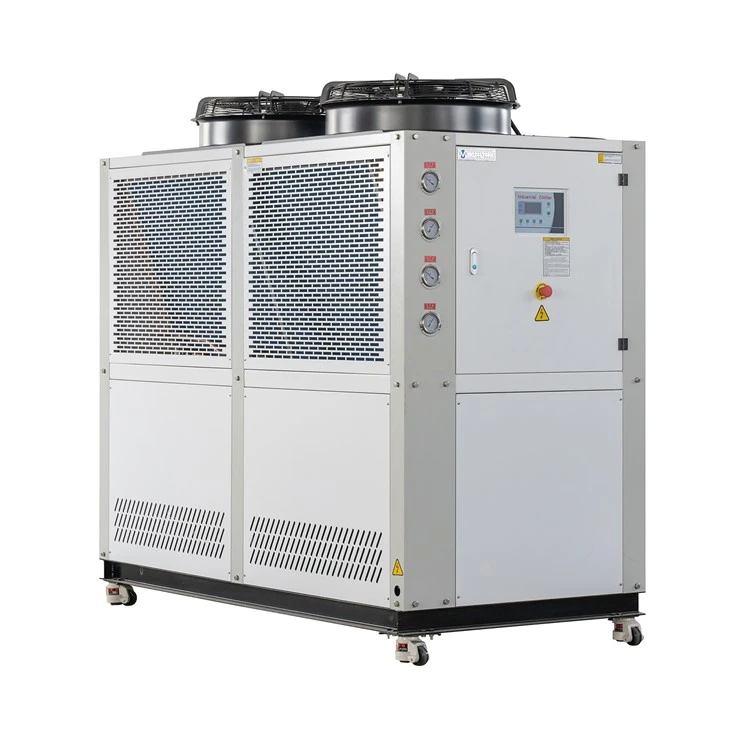

High Efficiency Frequency Converter Air Cooled Scroll Water Chiller For Blowing Machine

Technical Parameters

Model: MG-10CD

Cooling Capacity: 26.8kw

Power: 9.91kw

Refrigerant: R407c/R410a/R404a etc

Compressor: Hermetic scroll type Power: 4.1*2kw

Evaporator: SS tank with coil or shell and tube type Flow rate: 4.59m³/h Water tank: 200L Pipe: DN32

Condenser: High efficiency hydrophilic aluminium foll finned type Motor power: 0.58*2kw

Pump: Centrifugal water pump Power: 0.55kw

Protection System: compressor overheat protection, high/low pressure protection, phase missing/sequences protection, flow rate protection, anti-frozen protection

Size: L1560mm*W840mm*H1530mm

Weight: 450kg

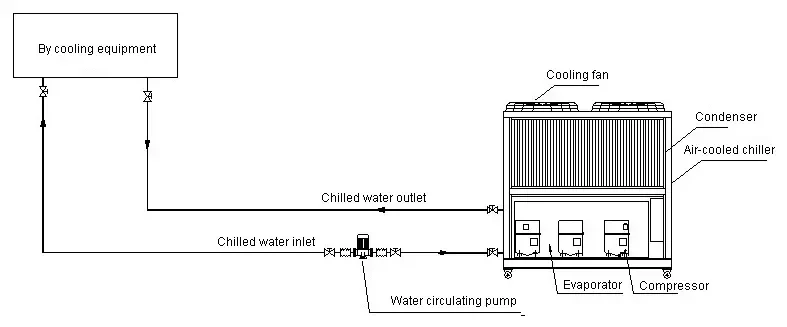

Working Principle

product-787-327

An air-cooled water chiller works by using a closed-loop refrigeration cycle involving four main components: a compressor, an air-cooled condenser, an expansion valve, and an evaporator. The compressor raises the pressure and temperature of the refrigerant vapor, which then flows to the condenser where fans blow ambient air over the coils to release heat, condensing the vapor into a high-pressure liquid. The liquid passes through the expansion valve, reducing its pressure and temperature, becoming a low-pressure mixture of liquid and vapor. In the evaporator, this mixture absorbs heat from the water that needs to be cooled, causing the water's temperature to drop while the refrigerant vaporizes and returns to the compressor to repeat the cycle. The chilled water is pumped to cool target equipment, and the warmed water loops back to the evaporator for continuous cooling. This design eliminates the need for a cooling tower, allows flexible outdoor installation, and requires less maintenance, making it suitable for industrial processes, commercial AC systems, data centers, and medical applications.

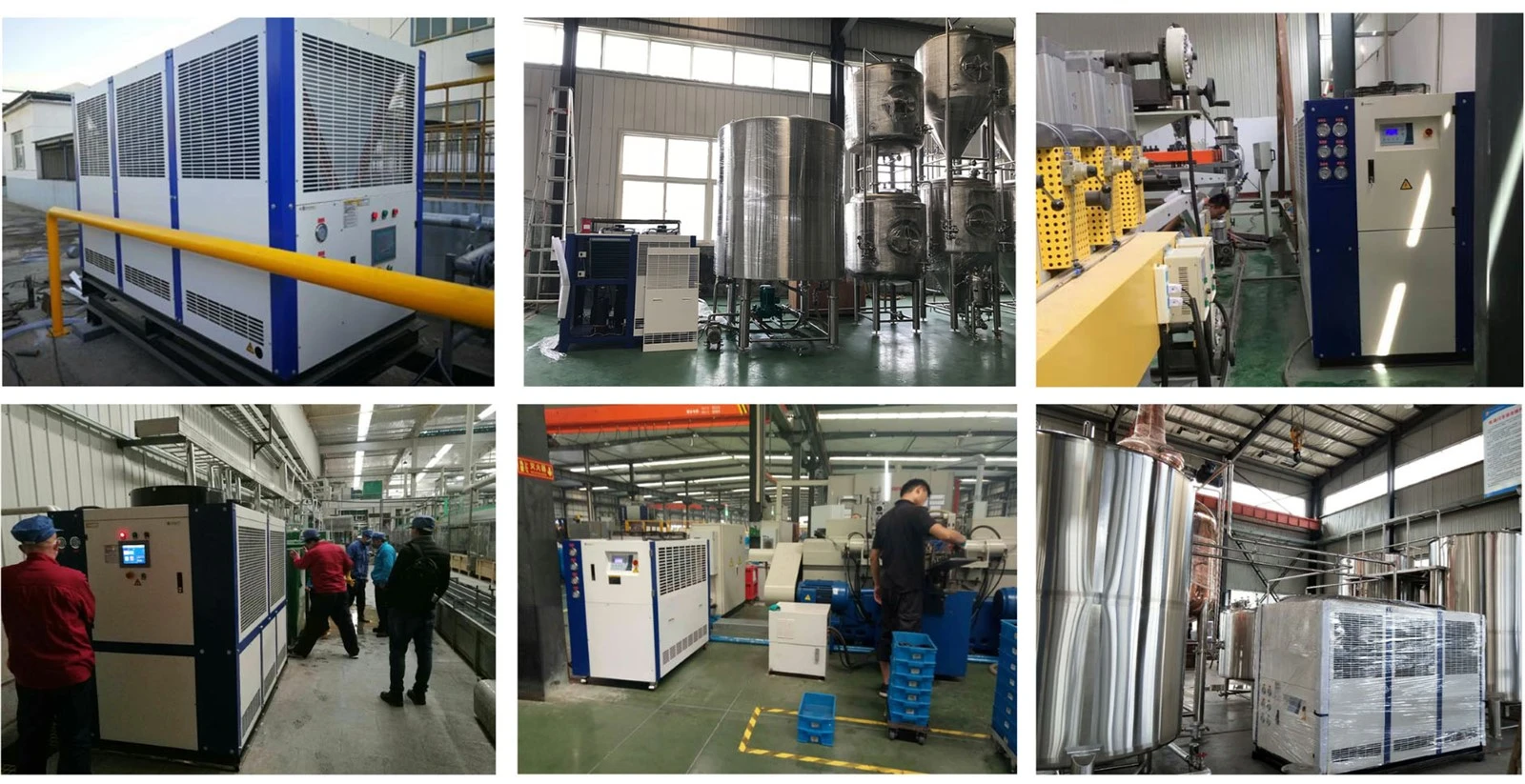

Case Show

air cooled chiller

Water chillers are essential for temperature control across various sectors. In manufacturing, they cool industrial machinery to prevent overheating and improve product quality. For commercial and residential HVAC systems, they enable centralized air conditioning, providing precise temperature regulation. In data centers, chillers safeguard servers from heat - related failures.

The food and beverage industry uses them to maintain low temperatures during processing and storage, preventing spoilage. In healthcare, they ensure the proper storage of medications and the functionality of medical equipment. For renewable energy, chillers optimize energy conversion in solar and geothermal systems, as well as battery storage. In chemical and petrochemical plants, they regulate reactions and enhance safety. Overall, water chillers play a crucial role in enhancing productivity, protecting assets, and meeting industry standards.
