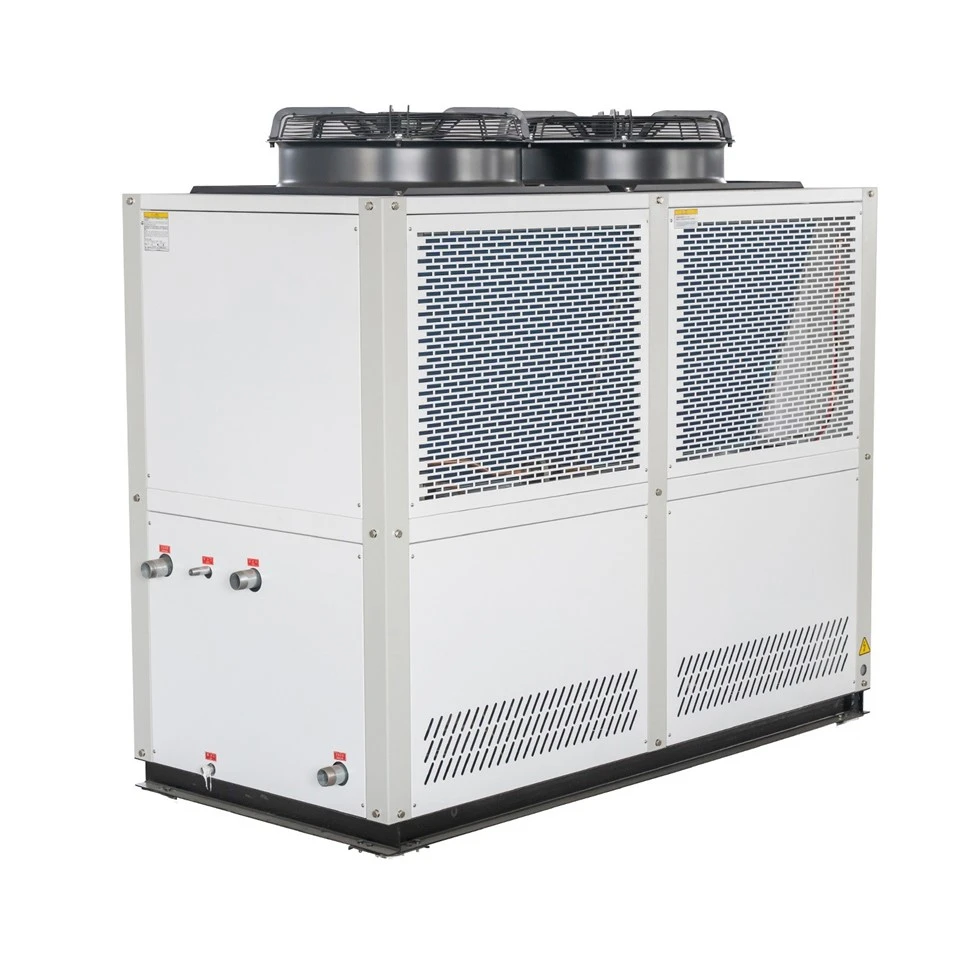

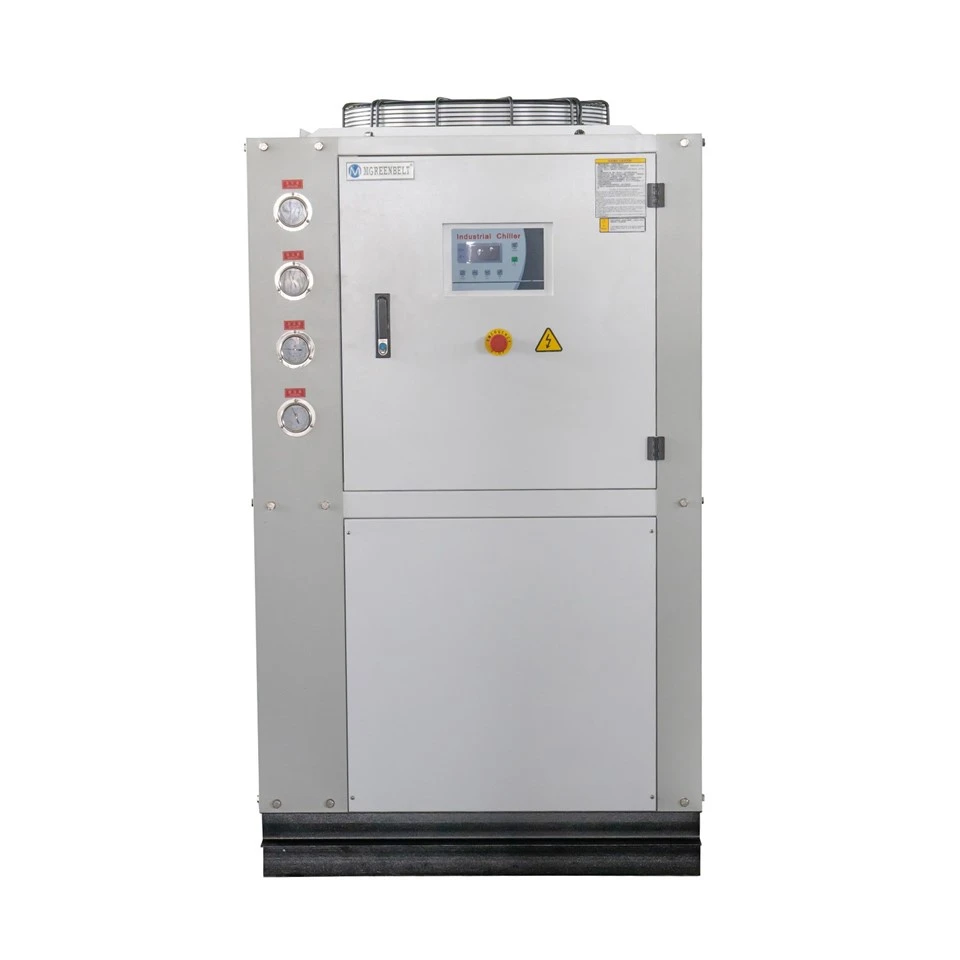

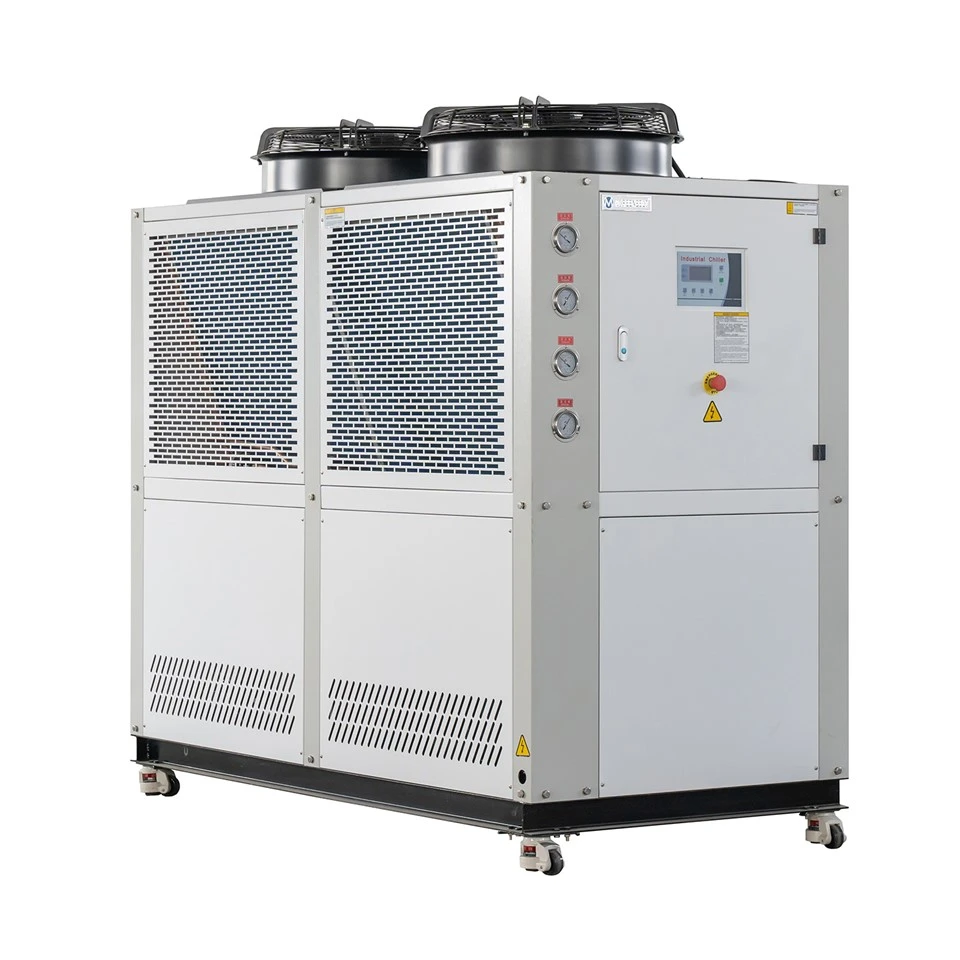

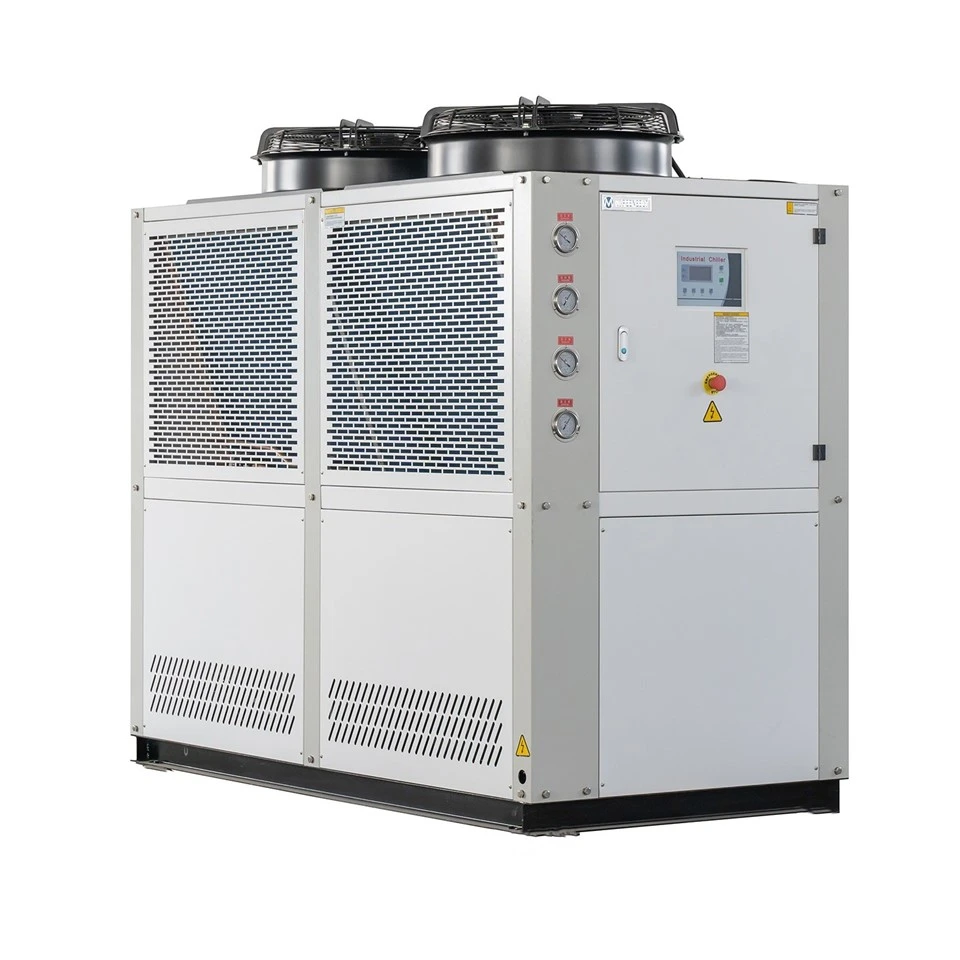

20Ton Chiller For Vacuum Coating
WATER CHILLER
Air cooled scroll chiller
Compressor Type: Scroll
Cooling Method: Air-cooled (uses fans and condensers for heat dissipation, no cooling tower required).
Features: Compact design, easy installation, suitable for areas with limited water supply or moderate ambient temperatures; moderate COP (Coefficient of Performance).
Applications: Small-to-medium commercial buildings, data centers, light industrial use.
Air cooled screw chiller
Compressor Type: Screw
Cooling Method: Air-cooled (relies on fans for heat rejection).
Features: Higher cooling capacity, stable operation, suitable for medium-to-large systems; relatively higher COP but noisier than scroll chillers.
Applications: Large shopping malls, factories, district cooling systems with high cooling demands.
water cooled scroll chiller
Compressor Type: Scroll
Cooling Method: Water-cooled (requires a cooling tower or water circulation system).
Features: Higher energy efficiency, quieter operation, ideal for locations with sufficient water supply; slightly more complex (due to cooling tower requirements).
Applications: Hospitals, hotels, office buildings where noise and efficiency are key concerns.
water cooled screw chiller
Compressor Type: Screw
Cooling Method: Water-cooled (depends on a cooling tower for heat dissipation).
Features: High cooling capacity, excellent energy efficiency (higher COP than air-cooled), reliable for continuous heavy-duty operation.
Applications: Large industrial plants, chemical facilities, district cooling systems with significant cooling needs.
|
Model |
MG-5C |
MG-10C |
MG-15CD |
MG-20CD |
|
|
Cooling capacity |
Kcal/h |
11266 |
24510 |
35948 |
47558 |
|
kw |
13.1 |
28.5 |
41.8 |
55.3 |
|
|
power |
kw |
5.61 |
10.83 |
16.31 |
21.27 |
|
Power input |
3PH-380V-50HZ |
||||
|
|
Type |
R22/R407C |
|||
|
Control |
Thermostatic expansion valve |
||||
|
|
Type |
Hermetic scroll type |
|||
|
Power(kw) |
4.2 |
9.05 |
6*2 |
9.05*2 |
|
|
|
Type |
SS Tank with coil or Shell and tube |
|||
|
Water flow m³/h |
2.25 |
4.89 |
7.17 |
9.48 |
|
|
Capacity L |
70 |
200 |
270 |
350 |
|
|
Inlet/Outlet |
DN25 |
DN32 |
DN40 |
DN40 |
|
|
|
Type |
High efficiency hydrophilic aluminum foll finned type |
|||
|
Power |
0.52 |
0.46*2 |
0.55*2 |
0.78*2 |
|
|
|
Type |
Centrigual water pump |
|||
|
Power kw |
0.55 |
0.55 |
1.5 |
1.5 |
|
|
Lift m |
25 |
20 |
20 |
20 |
|
|
|
Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection. |
||||
|
Dimension |
L mm |
1220 |
1610 |
1870 |
2120 |
|
W mm |
690 |
820 |
900 |
1000 |
|
|
H mm |
1200 |
1500 |
1600 |
1720 |
|
|
Wight |
kg |
200 |
450 |
750 |
850 |
Professional Team
Compressors：US brand, leader in scroll/screw compressors, high efficiency & reliability.Taiwan brand, known for high-performance screw compressors at competitive prices.German brand, premium refrigeration compressors, industrial-grade durability.
Expansion Valves：Danish brand, electronic expansion valves for precise temperature control & energy savings.Offers thermal & electronic expansion valves compatible with various refrigerants.
Control Systems：German industrial automation brand, reliable PLC-based chiller controls.French brand, smart electrical control systems for chillers.
Our Service
Create a comprehensive solution for efficient human theft manag
01
Pre-Shipment Testing & Certification
Ensure chillers meet technical specs: cooling capacity, COP, etc.Compliance with CE, AHRI, GCC, etc., for global market access.
02
Customized Packaging
Wooden crates + foam padding for safe sea/air freight.
03
Logistics & Customs Clearance
FOB/CIF terms, partners like DHL/Maersk for door-to-door delivery
