Water Chiller For Fermentation Tank

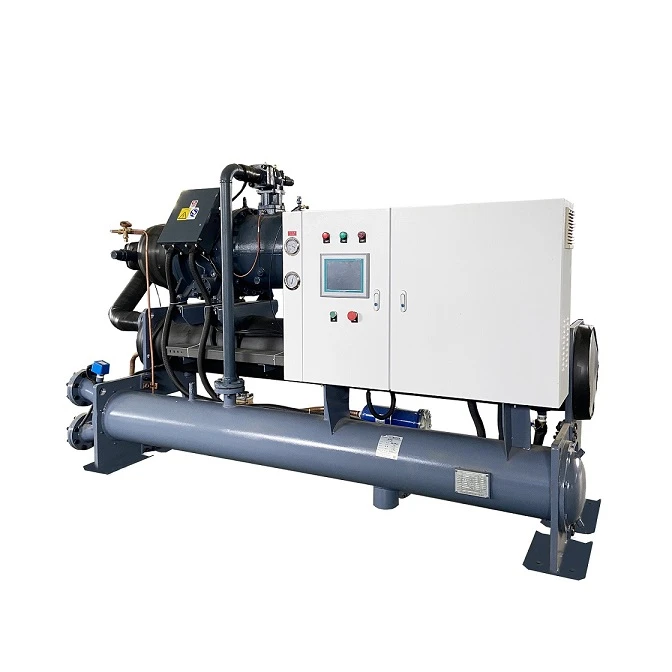

Water Chiller For Fermentation Tank suppliers

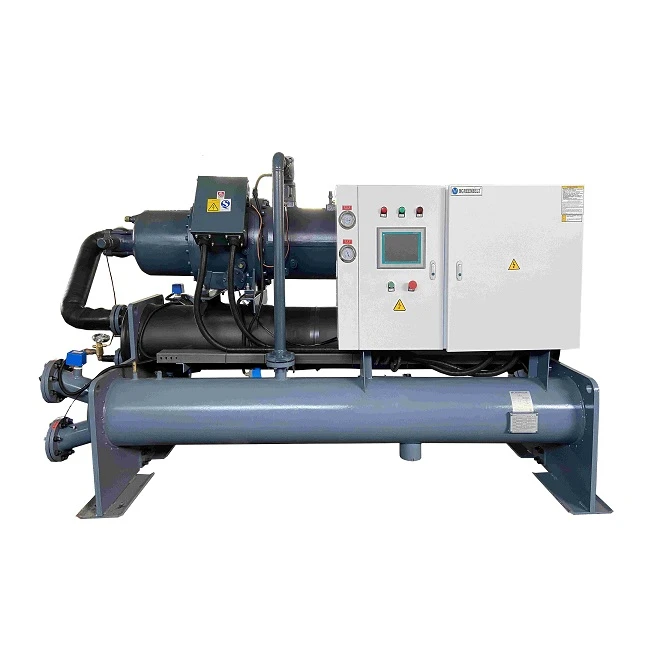

Water Chiller For Fermentation Tank factory

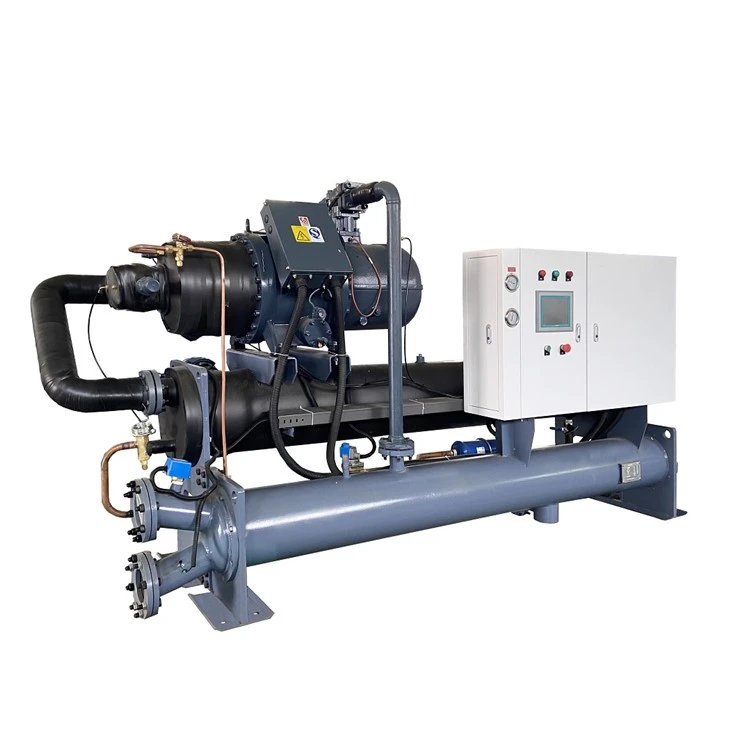

Water Chiller For Fermentation Tank best

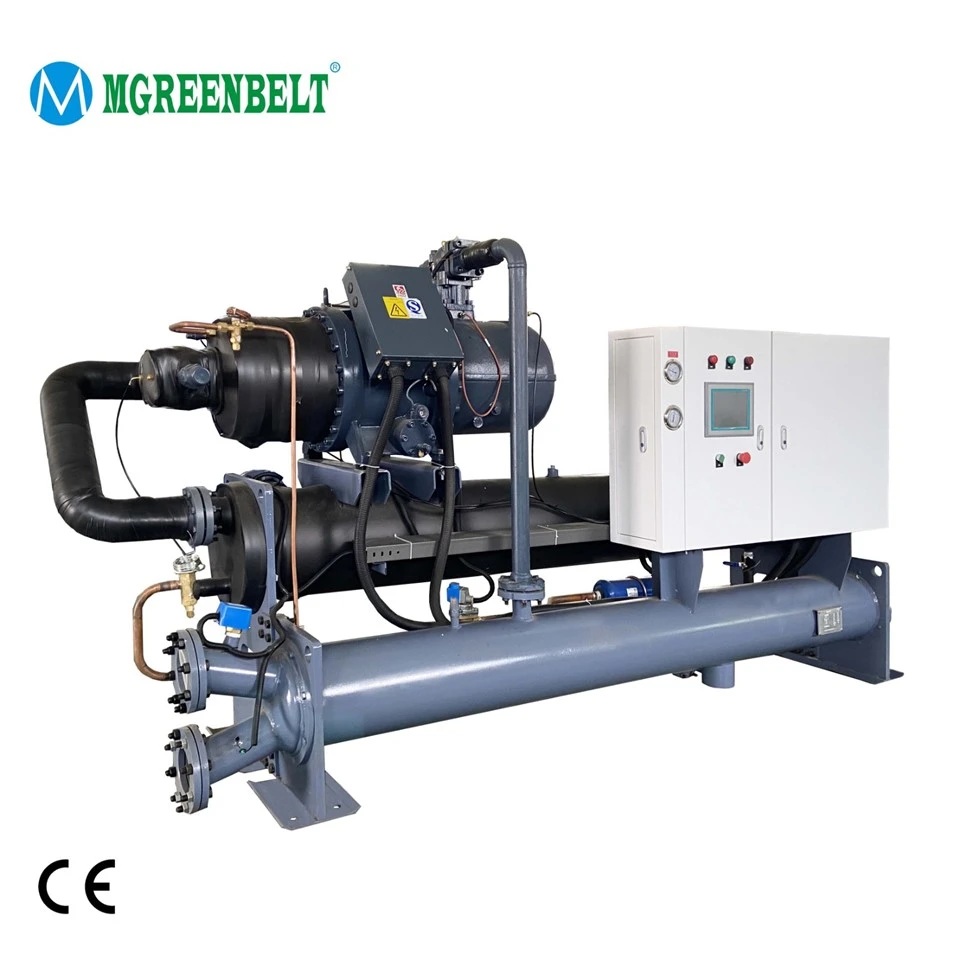

Water Chiller For Fermentation Tank

A Water Chiller for Beer Equipment is a specialized cooling system designed to maintain precise temperatures during beer fermentation, storage, and dispensing. It ensures consistent quality by controlling the thermal conditions crucial for brewing.
Precision Cooling – Maintains stable temperatures (±1°C) for optimal fermentation.

Send Inquiry

Product Introduction

product Key Features

Water-Cooled Water Chiller

Higher efficiency than air-cooled chillers (better COP).
Requires a cooling tower and condenser water loop.
More stable performance in high ambient temperatures.
Longer lifespan but higher maintenance needs.

Model		MG-90W	MG-130W	MG-160W	MG-180W
Capacity	USRT	26.2	35.8	46.6	50.3
	Kcal/h	79120	108360	141040	152220
	KW	92	126	164	177
Evaporator	Type	High efficiency copper tube shell and tube type
	Flow m³/h	15.8	21.6	28.1	30.3
	Inlet/Outlet	DN65	DN65	DN80	DN80
Dimension	L	2200	2200	2200	2500
	W	1000	1000	1000	1000
	H	1400	1400	1400	1500
Weight	kg	660	700	800	975

Industrial Chille

Water cooled water chiller

(1) The water-cooled screw machine is generally an open upper and lower structure of the chiller.

Simple structure, less moving parts, convenient installation and debugging, reliable operation, low cost;

(2) the single machine has large cooling capacity and high volumetric efficiency;

(3) the cooling capacity can be stepless adjustment.

2. Control system

The controller of Bump screw chiller, all electrical parts adopt Schneider brand. Electric control box waterproof design.

Independent and precise control system makes the system run stably and accurately.

3. Water system

The pump connected to the user tank on the chilled water side of the evaporator is the chilled water pump. The condenser side needs to be connected to the cooling water side, and the cooling pump and cooling tower need to be equipped to take away the heat of the condenser in the working system of the chiller, so as to achieve the function of refrigeration.
