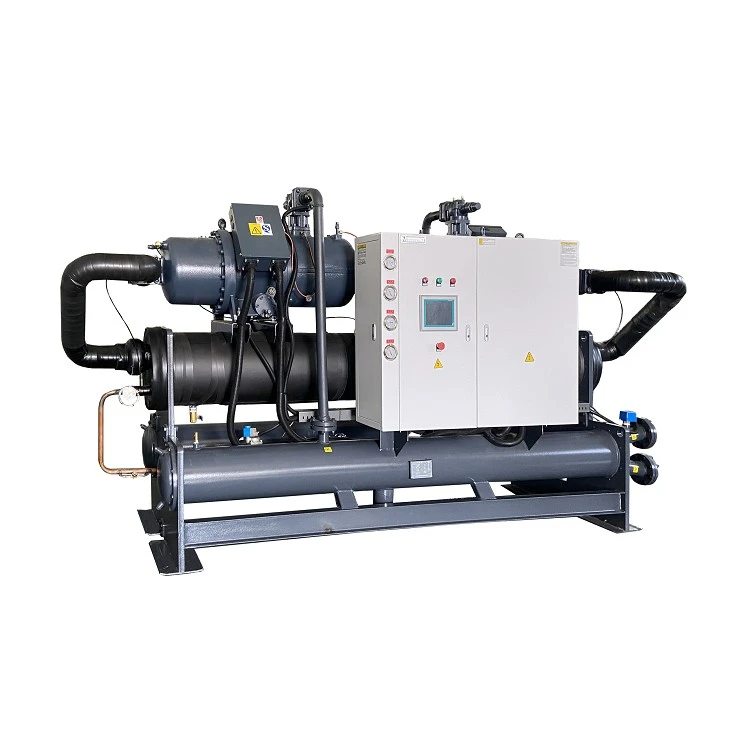

RSW Seawater Cooled Chiller



RSW seawater cooled chiller is a screw chiller that uses seawater as a cooling source for condensation heat exchange. Its core structure includes a shell and tube condenser, an evaporator, a twin-screw compressor and a PLC control system.

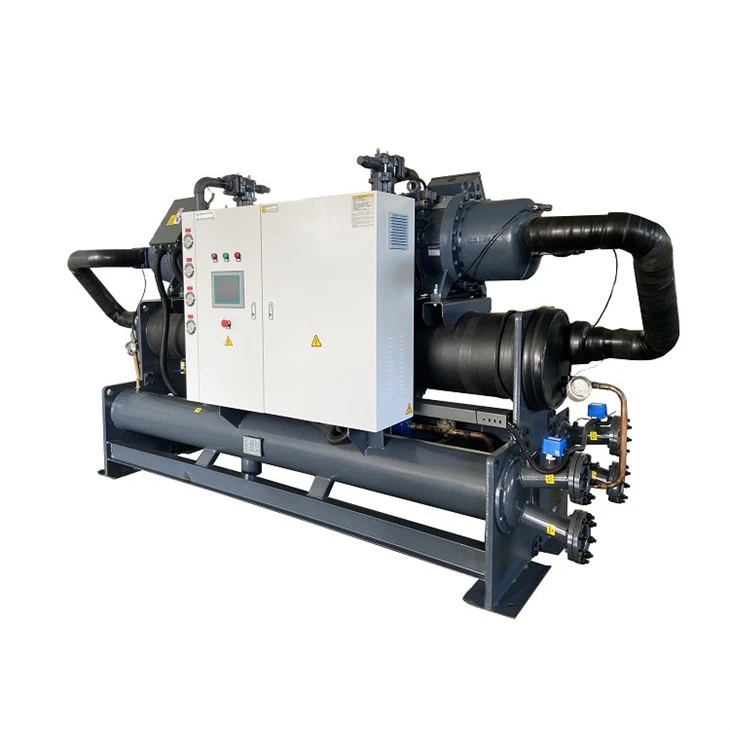

Screw Water Cooling Chiller(Double Unit)Series
Type			MG-250WD	MG-330WD	MG-350WD	MG-450WD	MG-500WD	MG-560WD	MG-600WD
Capty	-15℃	kw	120	156	168	210	226	266	280
	-20℃	kw	98	128	138	170	184	216	229
Power			3PH-380V-50Hz
Refrigerant	Type		R22
	Control		Thermostatic expansion valve
Compressor	Type		Semi-closed screw type
	kw power		58	72	80	96	104	118	126
	Start		Y-△
	Capacity		33-66-100(%)		25-50-75-100(%)
Evaporator	Type		High efficiency copper tube shell and tube type
	m³/h Flow	-15℃	20.6	26.7	28.8	36.0	38.7	45.6	48.0
		-20℃	16.8	21.9	23.7	29.1	31.5	37.0	39.3
	Inlet/Outlet		DN100	DN100	DN100	DN125	DN125	DN150	DN150
Condenser	Type		High efficiency threaded copper tube shell and tube type
	m³/h Flow		33.6	43.0	46.8	57.7	62.2	72.4	76.6
	Inlet/Outlet		DN65*2	DN65*2	DN65*2	DN80*2	DN80*2	DN100*2	DN100*2
Protection System			Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection.
Dimension	L	mm	2800	3200	3500	3500	3500	3500	4000
	W	mm	1000	1100	1100	1200	1200	1200	1200
	H	mm	1600	1600	1700	1800	1900	2000	2000
kg Weight			1300	1450	1500	1700	1900	2050	2150







Q: What is the working principle of RSW seawater cooled chiller?
A: The unit compresses the refrigerant through the compressor, and the refrigerant exchanges heat with seawater in the evaporator. After absorbing heat, it dissipates heat through the condenser to achieve seawater cooling.



Q: In what fields is this unit mainly used?
A: It is mainly used in marine engineering, ship air conditioning, aquaculture and other fields to provide a cold source for equipment or environments that require cold water.



Q: How to clean the evaporator of RSW seawater cooled chiller?
A: First shut down and cut off the power, rinse the inside of the evaporator with a special cleaning agent to remove scale and impurities, and then rinse with clean water to ensure heat exchange efficiency.



Q: What environmental factors should be paid attention to when installing the unit?
A: When installing, avoid highly corrosive environments, ensure good ventilation, stay away from heat sources and vibration sources, and the foundation must be flat and solid.



Q: What components need to be checked for daily maintenance of the unit?
A: Daily maintenance requires checking the compressor, fan, filter, valve and other components to check for abnormal sounds, leakage or blockage.



Q: Does the unit's condenser need to be replaced regularly?
A: If the condenser is properly maintained, it generally does not need to be replaced regularly, but if it is severely corroded or leaking and cannot be repaired, it needs to be replaced.
