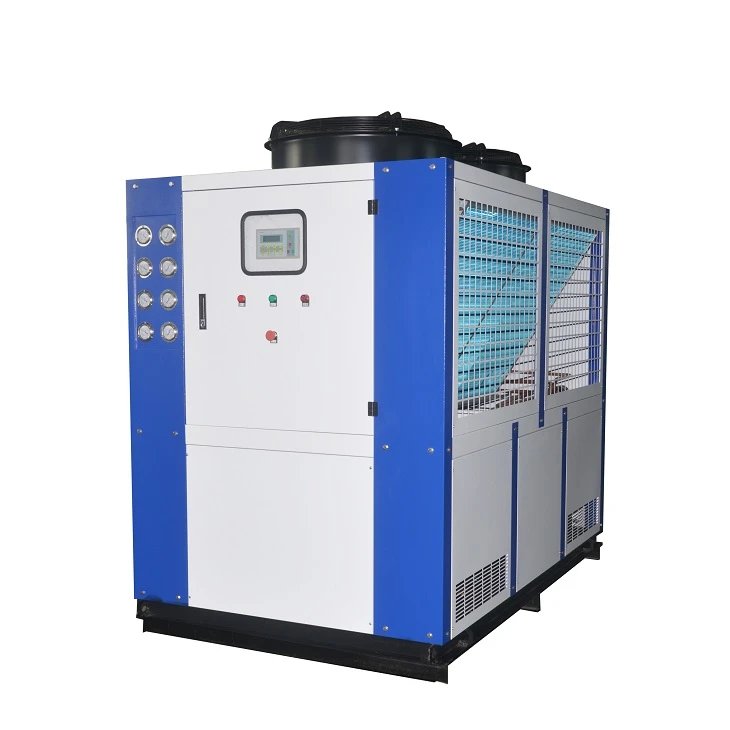

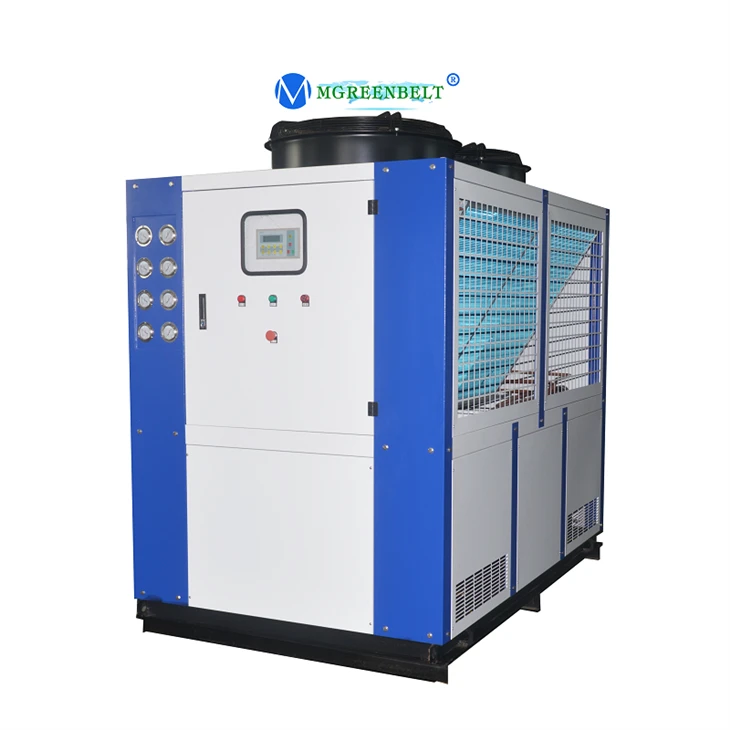

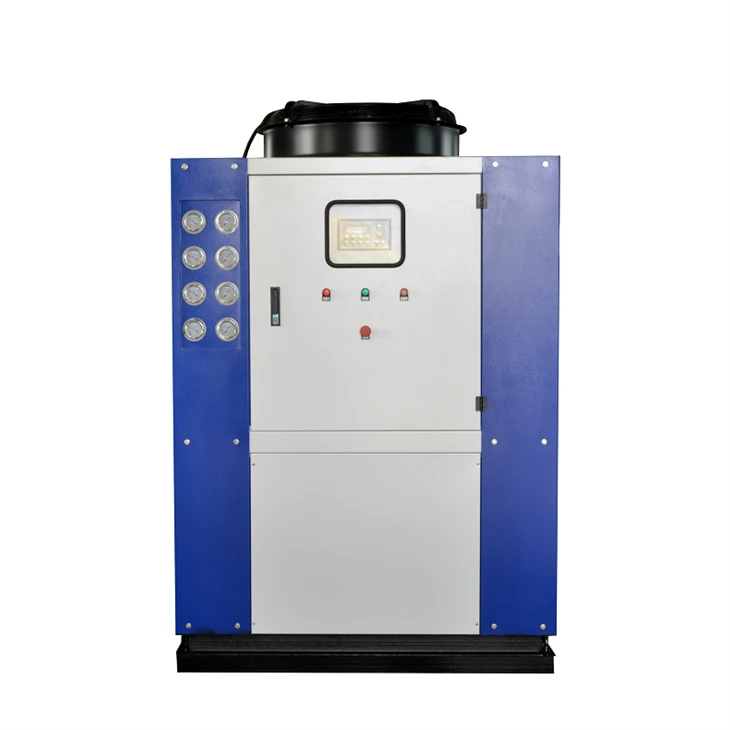

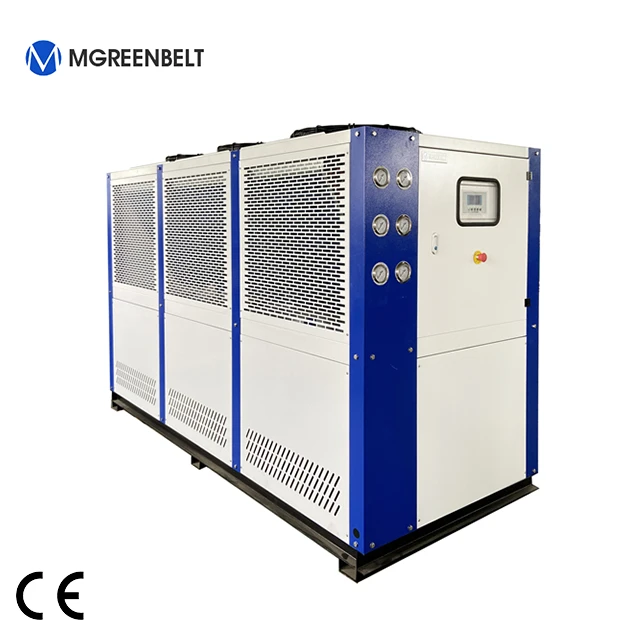

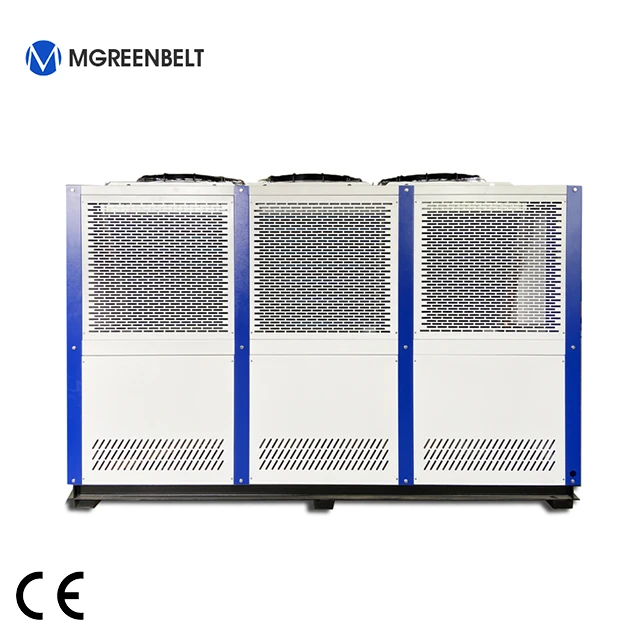

30hp Beverage Chiller Industrial Water Chiller
Product Introduction
The 30hp beverage chiller industrial water chiller is an efficient refrigeration equipment with a cooling capacity of up to 85kw. It features intelligent temperature control, durability and energy saving. It is suitable for various industrial scenarios that require precise temperature control, such as beverage production, chemical industry and electronics.
product comparison model
| Model |
MG-10CD
Water chiller
|
MG-20CD
Water chiller
|
MG-30CD
Water chiller
|
MG-40CD
Water chiller
|
| products |
|
|
|
|
| Cooling capacity | 30kw | 55kw | 85kw | 115kw |
| Input power | 10kw | 20kw | 30kw | 40kw |
| Compressor Power | 8.2kw | 16.26kw | 24.39kw | 32.52kw |
| Compressor Qty | 2 sets | 2 sets | 3 sets | 4 sets |
| Water tank capacity | 200L | 360L | 530L | 740L |
| Power supply |
3Phase, 208v-220v,380v-415v,440v-480v,or 575v,600v, 50hz/60hz |
|||
| Temp control | +7 degree c~+35 degree C adjustable | |||
| refrigerant Type | R22/r407c/r410a/r134a/r404a | |||
| Evaporator | Shell and tube type or SS304 Water tank type | |||
| Condenser | Aluminum fins+copper tubes type | |||
| Air fans | Air cooled type | |||
| Water pump | 0.55kw | 1.5kw | 3kw | 4kw |
Product Features
High-efficiency Refrigeration
The 30hp beverage chiller industrial water chiller is equipped with 3 compressors with a power of 24.39kw and a cooling capacity of up to 85kw, which can quickly cool a large amount of liquid to the required temperature.
Durable
The equipment is equipped with an SS304 water tank and an aluminum finned copper tube condenser, which have undergone anti-corrosion treatment and are combined with a high-strength steel frame structure. Under normal working conditions, it can operate continuously for over 10 years.
Precise Temperature Control
The temperature control accuracy of the equipment reaches ±0.5℃, which can ensure the stability of material temperature in food processing and avoid the impact on product quality due to temperature fluctuations.
Frequently Asked Questions
Q: What is the working principle of 30hp beverage chiller industrial water chiller?
A: 30hp beverage chiller industrial water chiller cools by circulating the refrigerant through compression, condensation, throttling, evaporation, absorbing heat from the water, and then the equipment is cooled by circulating the cold water through the water pump.
Q: In which beverage production scenarios is it applicable?
A: It is applicable to the cooling process after sterilization in the production of carbonated beverages, fruit juice beverages, tea beverages, dairy beverages, etc.
Q: How to clean a 30-horsepower beverage chiller or industrial chiller?
A: Regularly clean the dust off the condenser, wipe the outer shell with a soft cloth, and drain and clean the water tank regularly to remove impurities and scale.
Q: Is it complicated to install this device?
A: Air-cooled installation is relatively simple. Just place it stably and connect it to electricity. Water-cooled type requires connection to cooling towers, water pumps and pipes, which is slightly more complicated.
Q: What should be noted during the transportation of equipment?
A: Shock absorption and fixation measures should be taken to avoid collisions and ensure that all components are not damaged during transportation.
