This is high efficiency energy saving blowing machine air cooled scroll water chiller MG-10C(D), widely used in plastic injection mold, extrusion mold and blowing machine

Send Inquiry

Product Introduction

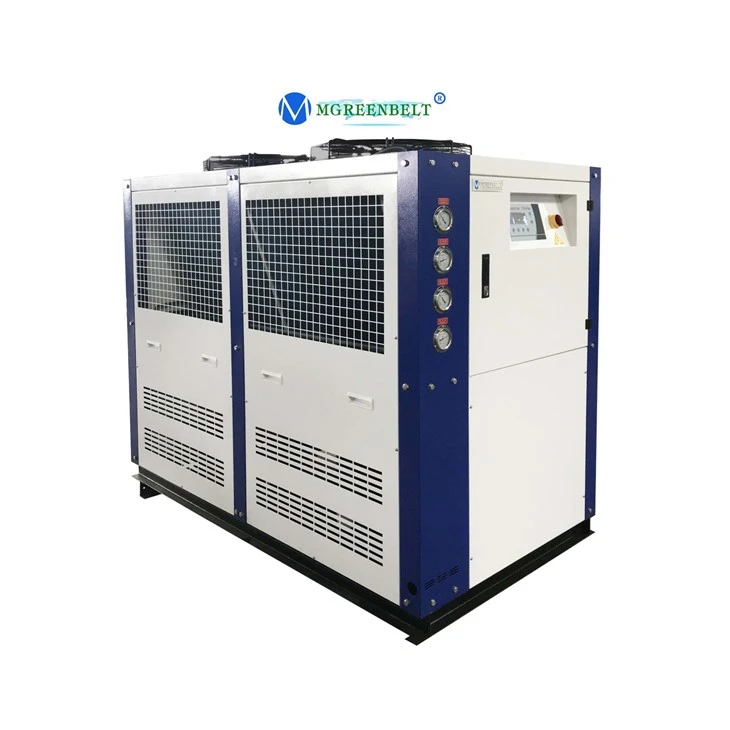

High Efficiency Frequency Converter Air Cooled Scroll Water Chiller for Blowing Machine

Industrial Air Cooled Water Chiller | Reliable Cooling Solution For Manufacturing & Processing

High efficientcy CE certificated frequency converter air cooled scroll water chiller, widely used in plastic industry, ice rink, HVAC, beer brewing, sea water cooling, bakery etc,

It operates based on the vapor - compression cycle, which involves the compression, condensation, expansion, and evaporation of a refrigerant gas. The chiller consists of four main components: the compressor, condenser, expansion valve, and evaporator. The compressor compresses the low - pressure and low - temperature refrigerant gas into high - pressure and high - temperature gas. The high - pressure gas then enters the air - cooled condenser, where it releases heat to the surrounding air with the help of natural convection and fans, cooling down and condensing into a liquid. The liquid refrigerant passes through the expansion valve, which reduces its pressure and temperature. Then, it enters the evaporator, where it absorbs heat from the water or other substances to be cooled, evaporating back into a low - pressure gas, and the cycle repeats.

Main Components

Compressor: Usually a scroll compressor, which has a flexible design for good fluid - attack resistance and impurity tolerance. It provides continuous compression output, reducing air - flow pulsation and resulting in low - vibration noise.

Air - side Heat Exchanger: With a special - shaped design, inner - grooved patent saw - tooth design, and aluminum fins, it ensures efficient heat exchange between the air - side exchanger and ambient air.

Water - side Heat Exchanger: It can be of tube - in - shell tank type or brazed - plate type. The tube - in - shell type has an optimized design of inner and outer screwed tubes to increase the heat - exchange efficiency. The brazed - plate evaporator made of stainless steel has a diagonal design to better utilize the heat - exchanging surface.

Throttling Device: Adopts a high - quality external - balanced thermal expansion valve or capillary - type throttling device, which has high reliability and adjustability, enabling precise control of refrigerant and temperature.

Axial Fan: Usually a famous - brand axial fan with a compact structure, which is designed according to aerodynamic principles. The falciform impeller ensures high - efficiency and low - noise operation and maintains good aerodynamic performance even under short - air - inlet conditions.

Features and Advantages

Wide Application Range: Suitable for various industrial fields such as manufacturing, chemical industry, and cold storage, and can be used for low - temperature cooling and constant - temperature and humidity applications.

High Efficiency and Energy Saving: It has high cooling efficiency, which can achieve rapid cooling and stable temperature control. Moreover, since there is no need for additional cooling towers and water pumps, energy consumption is reduced.

Easy Installation and Maintenance: Due to the air - cooled heat - dissipation method, there is no need to connect to water sources and drainage systems, so installation and maintenance are relatively simple and convenient, reducing equipment operating costs.

Environmentally Friendly: The air - cooled scroll water chiller does not require the use of cooling water and coolant, reducing the impact on the environment. It does not require the discharge of waste water, making it more environmentally friendly.

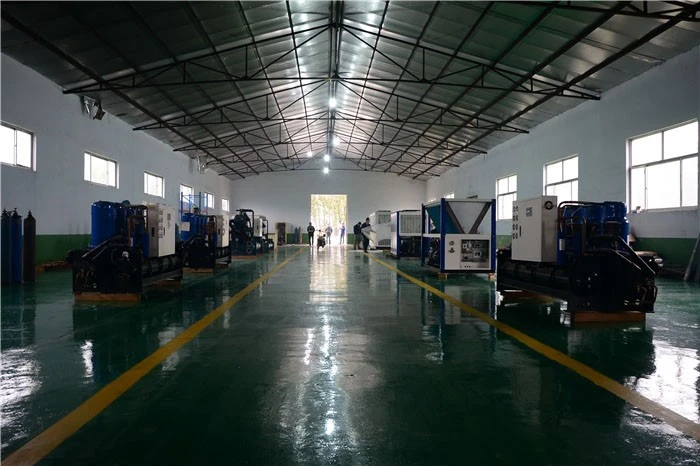

Our production and equipment
