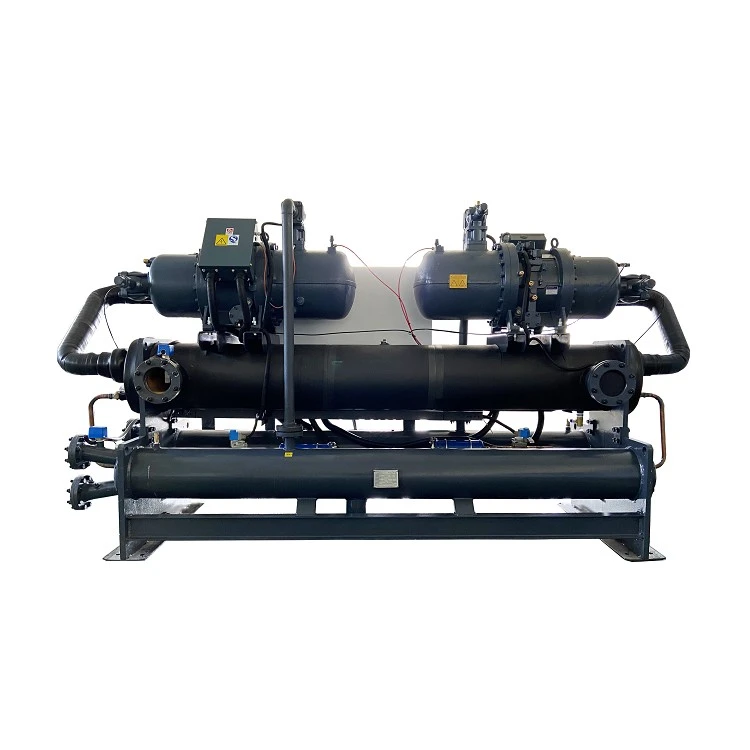

Water Chiller Cooling Machine



Water chiller cooling machineWater chiller cooling machine is a high-efficiency circulating refrigeration equipment, and its structure mainly includes a compressor, an evaporator, a condenser, a water pump and a water storage tank.

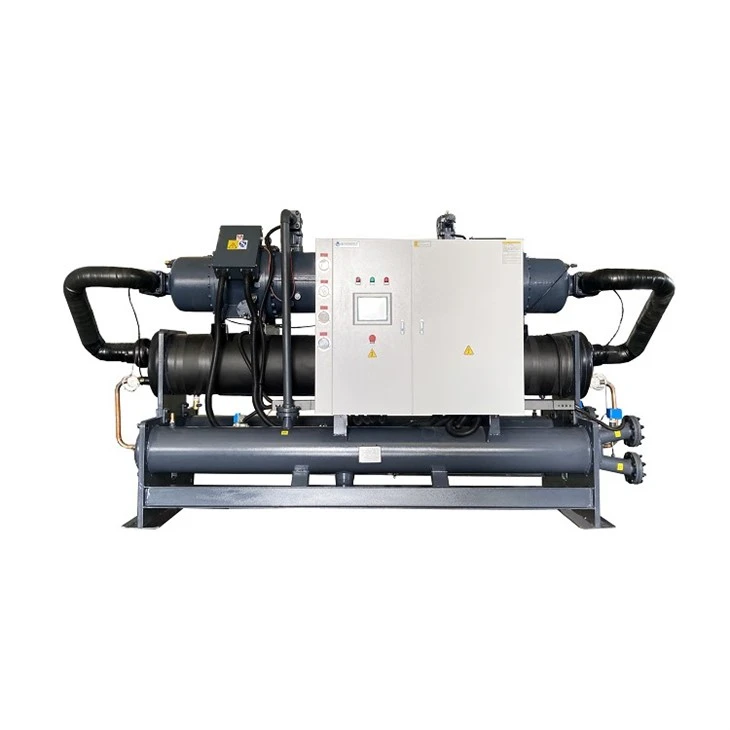

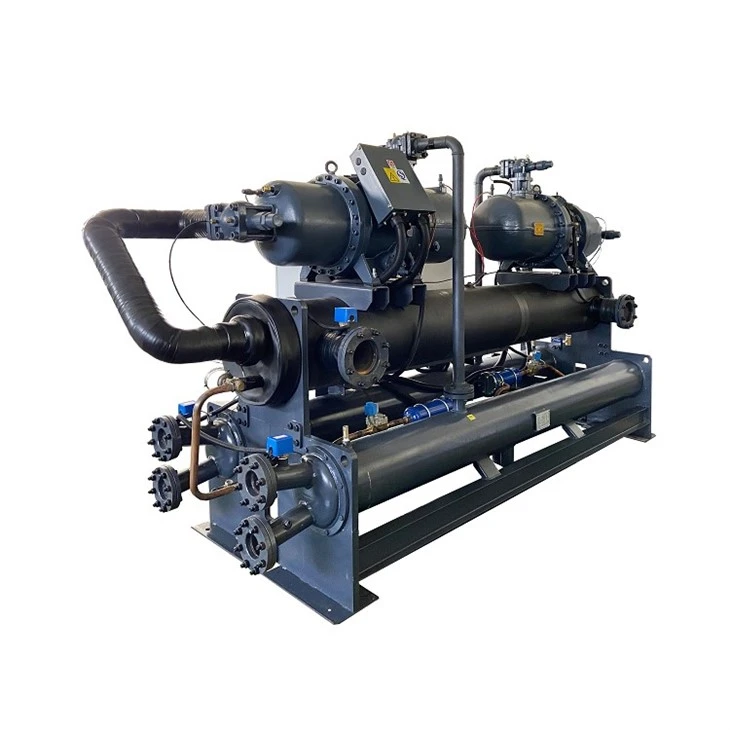

Screw Water Cooling Chiller(Double Unit)Series
Model		MG-250WD	MG-330WD	MG-350WD	MG-450WD	MG-500WD	MG-560WD	MG-600WD
Capty	USRT	71.7	93.8	100.7	125.1	134.2	158.7	167.8
	Kcal/h	216720	283800	304440	378400	405920	479880	507400
	KW	252	330	354	440	472	558	590
Power		3PH-380V-50Hz
Refrigerant	Type	R22
	Control	Thermostatic expansion valve
Comperssor	Type	Semi-closed screw type
	kw Power	60	76	84	100	110	124	132
	Start	Y-△
	Capacity	33-66-100(%)		25-50-75-100(%)
Evaporator	Type	High efficiency copper tube shell and tube type
	m³/h Flow	43.2	56.6	60.7	75.4	80.9	95.7	101.1
	Inlet/Outlet	DN100	DN100	DN100	DN125	DN125	DN150	DN150
Condenser	Type	High efficiency threaded copper tube shell and tube type
	m³/h Flow	58.8	76.6	82.6	101.8	109.7	128.6	136.1
	Inlet/Outlet	DN65*2	DN65*2	DN65*2	DN80*2	DN80*2	DN100*2	DN100*2
Protection System		Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection.
Dimension	L	2800	3200	3500	3500	3500	3500	4000
	W	1000	1100	1100	1200	1200	1200	1200
	H	1600	1600	1700	1800	1900	2000	2000
Weight	kg	1300	1450	1500	1700	1900	2050	2150



Q: What is the working principle of a water chiller?
A: A water chiller compresses the refrigerant through a compressor. The refrigerant releases heat through condensation, expands and reduces pressure, then evaporates and absorbs heat, absorbing the heat of water, lowering the water temperature, and recirculating the cooling equipment.



Q: In which industries are water chillers mainly used?
A: Water chillers are widely used in industries such as plastic processing, electronic manufacturing, food refrigeration, medical equipment, and chemical reactions to provide constant temperature cooling for equipment or processes.



Q: How to clean the condenser of a water chiller?
A: The cleaning staff first turns off the water chiller, disassembles the condenser casing, and rinses the heat sink with a high-pressure water gun. Stubborn stains can be wiped with a special detergent, then dried and reinstalled.



Q: What should be paid attention to when installing a water chiller?
A: The installer needs to select a flat ground, ensure that the water chiller is sufficiently spaced from the wall and other equipment, that the connecting pipes are well sealed, and that the power supply voltage meets the equipment requirements.



Q: What is the daily maintenance of the water chiller?
A: Maintenance personnel check the chiller's operating temperature and pressure daily, clean the filter weekly, check the refrigerant level monthly, and regularly replace lubricating oil and filter elements.



Q: What should be done when the chiller is turned on for the first time after installation?
A: Before the first start-up, the installer checks the connections of each component, opens the valve, powers on the machine for a test, observes the chiller's operating sound, temperature, and pressure, and officially uses it after confirming that it is normal.
