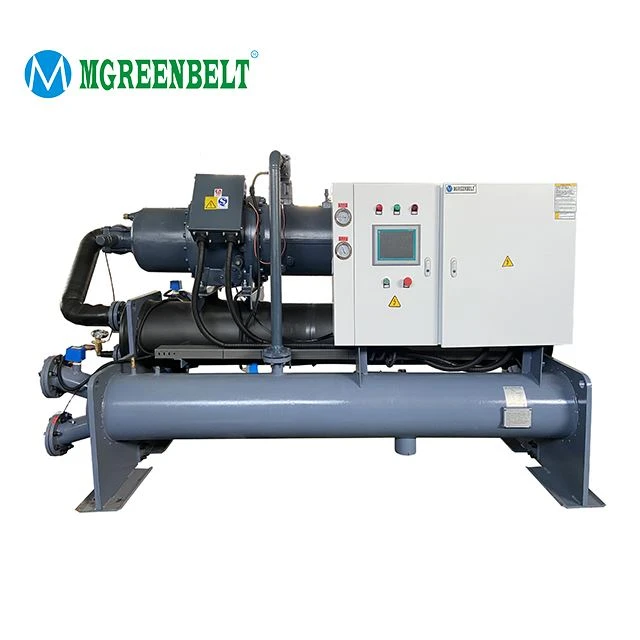

China Made Industrial Water Cooled Ul Certificate Screw Water Chiller

China Made Industrial Water Cooled Ul Certificate Screw Water Chiller

Model: MG-350W

Cooling capacity: 353kw/100ton

Refrigerant: R407c/R404a etc

Compressor: Semi-closed screw type

Evaporator: High efficiency copper tube shell and tube type DN 125 inlet/outlet 60.5m³/h flow rate

Condensor: High efficiency threaded copper tube shell and tube type DN125 inlet/outlet 81.3m³/h flow rate

Protection system: compressor overheat protection, high/low pressure protection, phase missing/sequence protection, flow rate protection, anti-frozen protection

Dimension: L3500mm*W1200mm*H1500mm

Weight:1500kg

Compression Stage: The compressor increases the pressure and temperature of the refrigerant (e.g., R410A), converting it into a high-pressure, high-temperature gas.

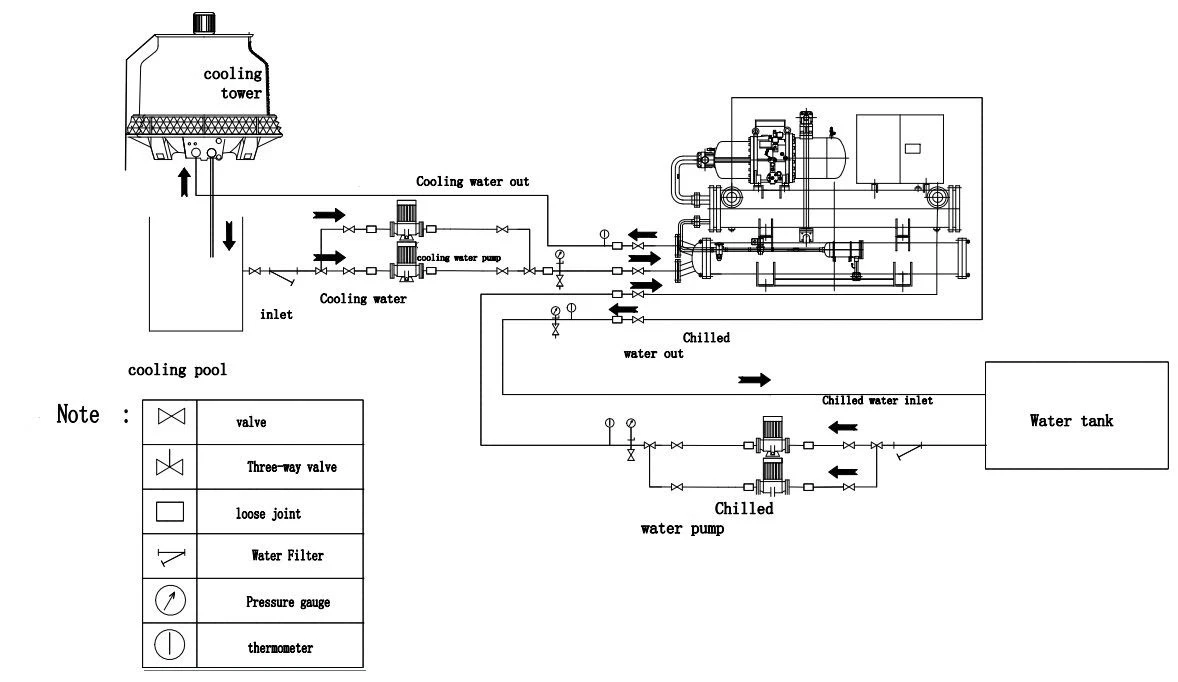

Condensation Stage: The hot refrigerant gas enters the water-cooled condenser, where cooling water flows around it. Heat is transferred from the refrigerant to the water, causing the refrigerant to condense into a high-pressure liquid. The warmed cooling water is typically discharged to a cooling tower for heat dissipation.

Evaporation Stage: The mixture enters the evaporator, where it absorbs heat from the chilled water (used for cooling the target system). The refrigerant evaporates into a low-pressure gas, and the chilled water is circulated to the load (e.g., industrial equipment) to remove heat.
