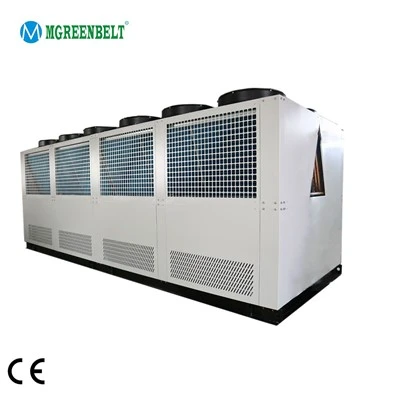

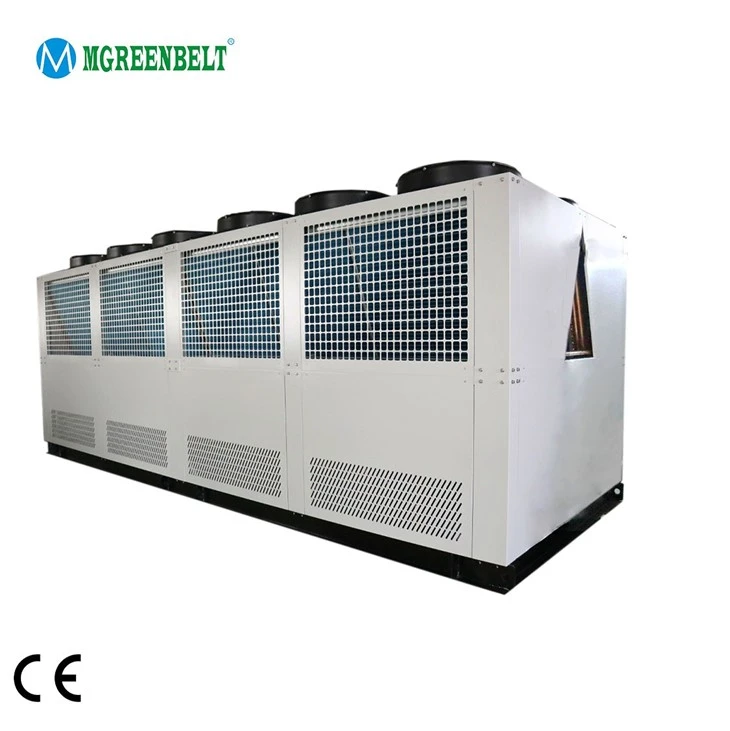

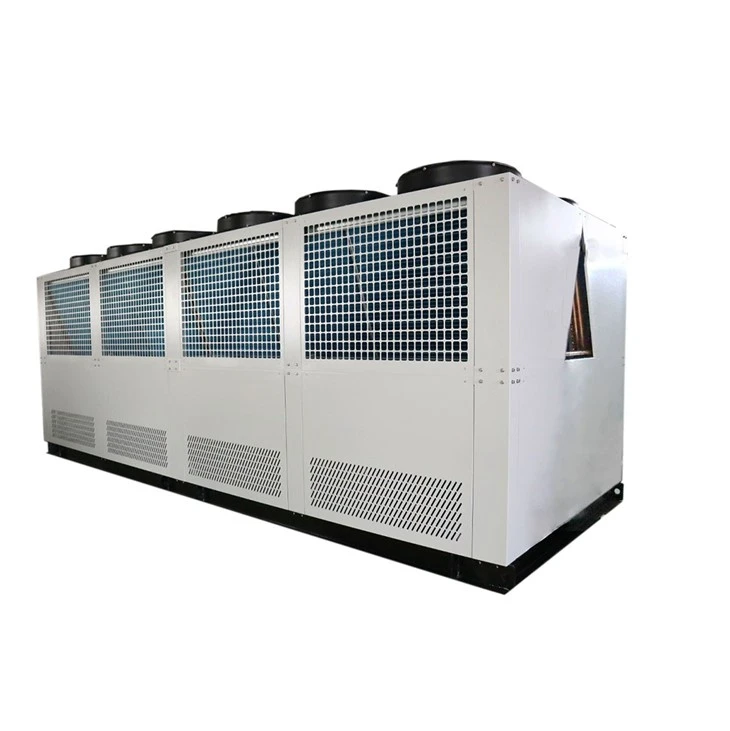

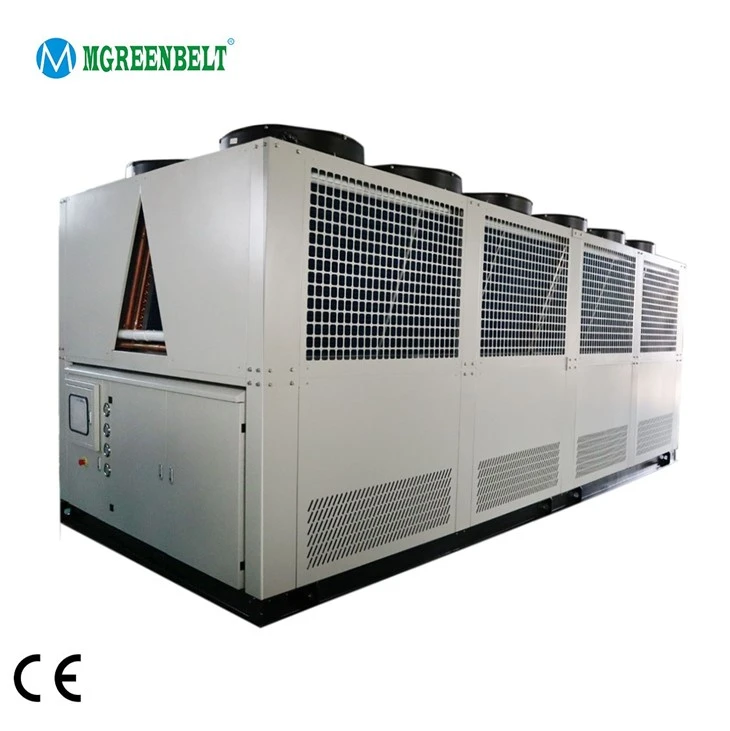

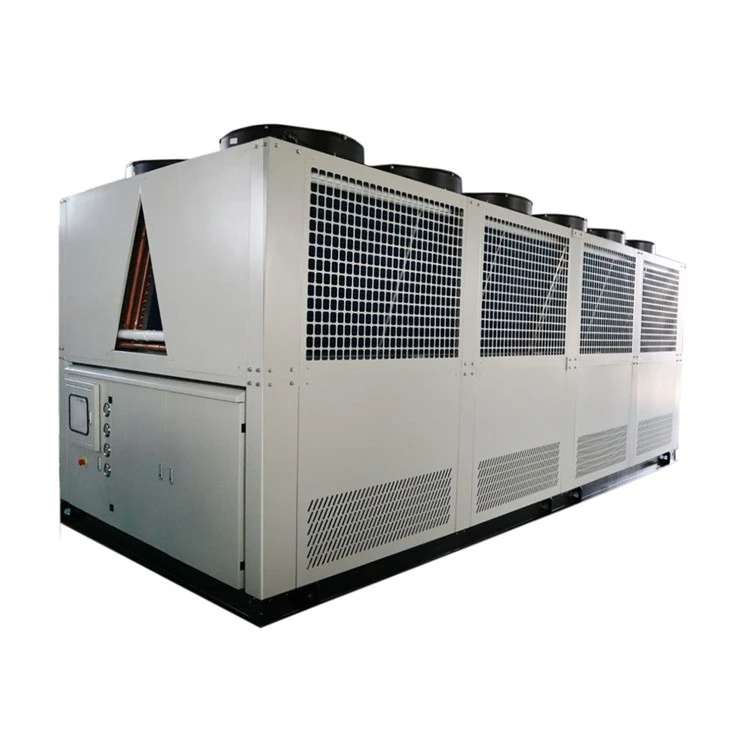

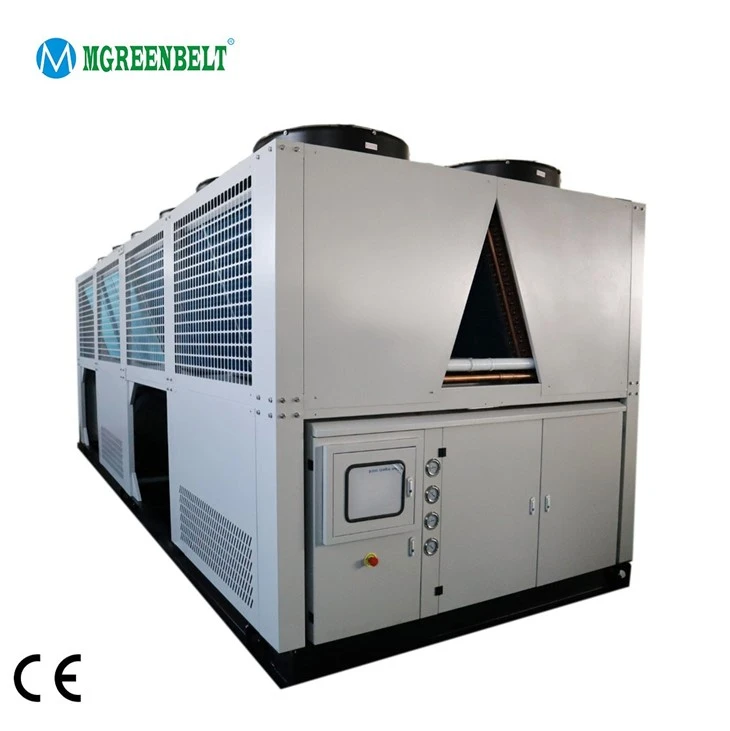

HeavyDuty Industrial Glycol Chiller System With InverterTechnology For PlasticMolding LaserEquipment And IndustrialRefrigeration Applications

A water chiller is a cooling device that removes heat from water and circulates chilled water to cool industrial equipment or processes. It uses a refrigeration cycle-compressor, condenser, evaporator, and expansion valve-to lower water temperature, typically between 5–30°C. Modern chillers feature energy-efficient tech like inverters or eco-friendly refrigerants (e.g., R32). They come in types: industrial for large-scale use, portable for mobility, and precision models with ±0.5°C control. Applied in manufacturing, labs, and commercial spaces, they prevent overheating, ensure process stability, and cut energy costs, offering reliable cooling for various needs.

The compressor compresses the low-pressure refrigerant gas into high-pressure gas, which then enters the condenser. In the condenser, the high-pressure refrigerant gas is cooled by the air blown by the fan, and the heat is dissipated into the air, condensing into a high-pressure liquid. The high-pressure liquid refrigerant passes through the expansion valve and is throttled and depressurized to become a low-pressure liquid-gas mixture, and then enters the evaporator. In the evaporator, the low-pressure refrigerant absorbs the heat of the water to be cooled, so that the water temperature drops, and the refrigerant itself vaporizes into a low-pressure gas. The low-pressure refrigerant gas returns to the compressor again to start the next cycle, so as to realize continuous cooling of the water.

Model: Mg-300C

Cooling Capacity: 307kw/88ton

Refrigerant: R407c/R410a or as you requested

Compressor: Semi-closed screw type  power: 94kw

Evaporator: High efficiency copper tube shell and tube type

Condenser: High efficiency hydrophilic aluminum foll finned type

Protection System: compressor overheat protection, high/low pressure protection, phase missing/sequence protection, flow rate protection, anti- frozen protection

Size: L4950mm*W1950mm*H2100mm

Weight: 3600kg



Company profile



Jinan ZS times technology Co.,Ltd. and Jinan Mgreenbelt Machinery Co., Ltd. are core enterprises of MGREENBELT compressed air system products and services chain. Specializing in technical research, sales, maintenance, and after-sales service of Industrial Refrigeration and Air Compressor Systems. We provide MGREENBELT Industrial Chillers, Cold Storage Rooms, Cold Storage Panels, and are also a professional supplier of Air Compressor accessories Provide AE, MGREENBELT brand imported Air Compressor accessories and consumables series products

01

High Quality

World famous components and excellent design

02

Advanced Equipment

High precision

Automation

Energy efficiency

Connectivity

03

Professional Team

more than 10 professional engineers with experience in water chiller

04

Custom Service

one year warranty and life long after sale service
