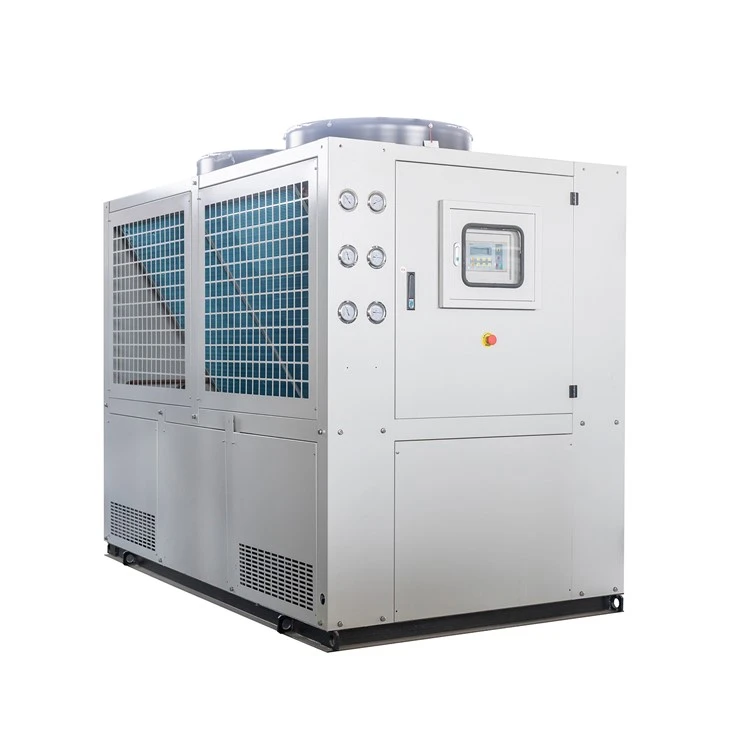

25Ton Chiller For Rubber Machine Cooling
Product Introduction
The 25ton chiller for rubber machine cooling is an industrial-grade cooling system specially designed for rubber production equipment. It adopts a structure of 304 stainless steel evaporator + shell and tube condenser and realizes rapid cooling of the rubber extrusion/molding process through precise temperature control of ±0.5℃. Its modular design supports 24-hour continuous operation and saves more than 30% energy compared with ordinary water chillers.
Product Features
High-efficiency Refrigeration Output
The MG-30CT 25-ton air-cooled chiller is equipped with 3 high-efficiency fully enclosed scroll compressors, with a total cooling capacity of 25 tons. It can remove 87.5kW of heat per hour, meeting the high-intensity cooling requirements of rubber machines.
Stable Temperature Control Guarantee
The 25ton chiller for rubber machine cooling is equipped with a microcomputer control system. Combined with high-precision sensors, the temperature control accuracy reaches ±0.5℃, ensuring the stability of process temperatures such as rubber vulcanization and extrusion.
Technical Specifications:
|
Type |
Air Cooled type Chiller |
||
|
Model |
MG-30CT |
||
|
Cooling capacity |
25Ton |
||
|
Total Input power |
30kw |
||
| Controller Type | Mirco-computer type | ||
|
Power |
3PHASE-380V-50HZ |
||
|
Refrigerant Type |
R407C/R410A/R448A/R134a |
||
|
Compressor Type |
Efficient Hermetic scroll type |
||
| Compressor Power | 8.13*3 KW | ||
| Compressor Quantity | 3 Sets | ||
|
Condenser Type |
High efficiency Aluminum fins+copper tube type |
||
|
Air Fan Power |
0.937*3 kw |
||
| Air Fan Flow | 30000 m3/h | ||
| Air Fan Quantity | 3Sets | ||
|
Evaporator Type |
High efficiency Shell and tube type |
||
| Chilled water Flow rate | 15 m³/h | ||
|
Water Pump Power |
3kw |
||
| Water Pump Pressure | 2.2Bar | ||
|
Main Components: |
|||
|
Item |
Brand |
Item |
Brand |
|
Compressor |
Panasonic |
Evaporator |
MGREENBELT |
|
Electric parts |
SCHNEIDER |
Condenser |
MGREENBELT |
|
Expansion Valve |
EMERSON |
Controller |
PUNP |
|
Filter Dryer |
DNAFOSS |
Water Pump | CNP |
Detailed Pictures

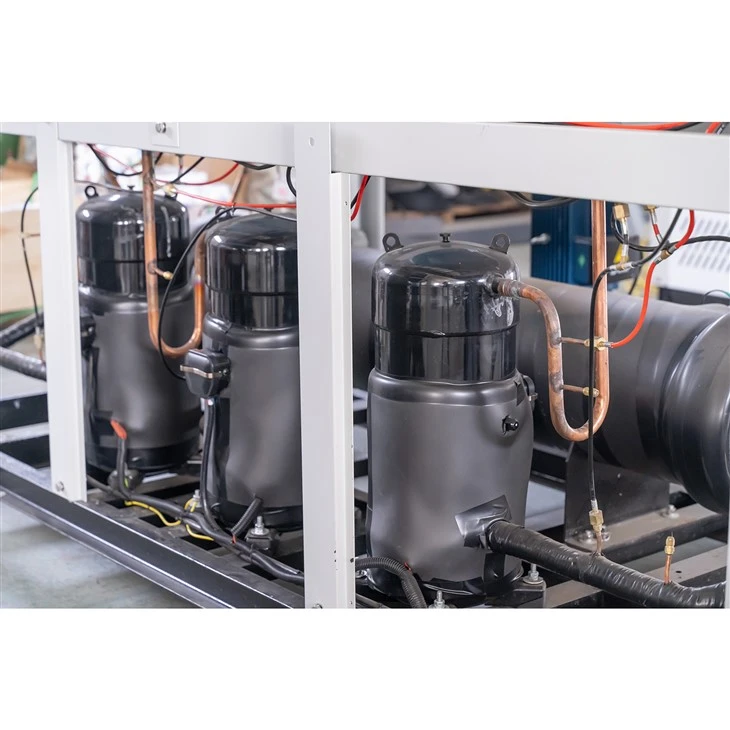

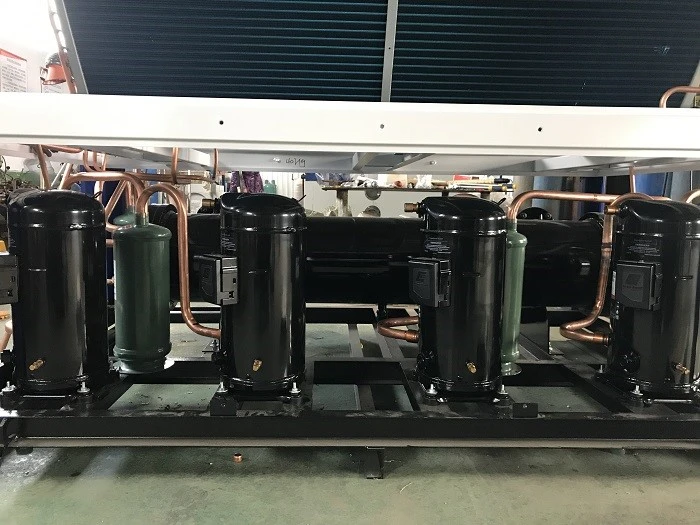

Imported Copeland/Danfoss/Panasonic compressors
Electronic temperature controller: over limit alarm, temperature tracking, automatic control, temperature control accuracy 0.1-1 ℃
Schneider electrical components

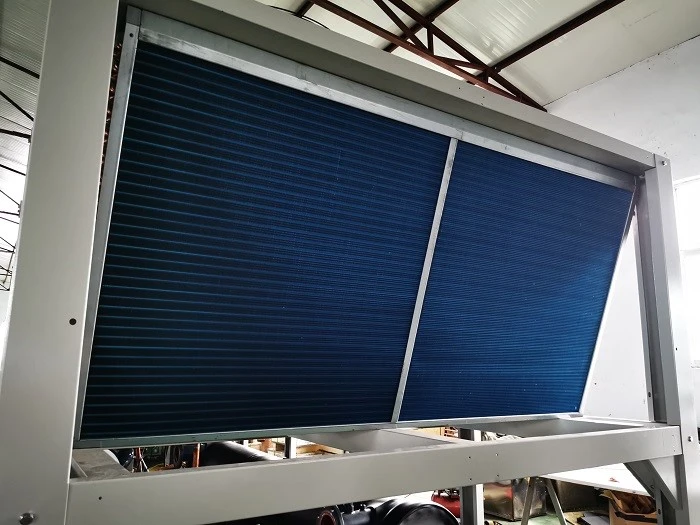

Aluminum fins+copper tube condenser

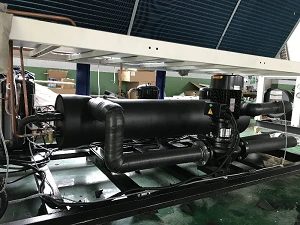

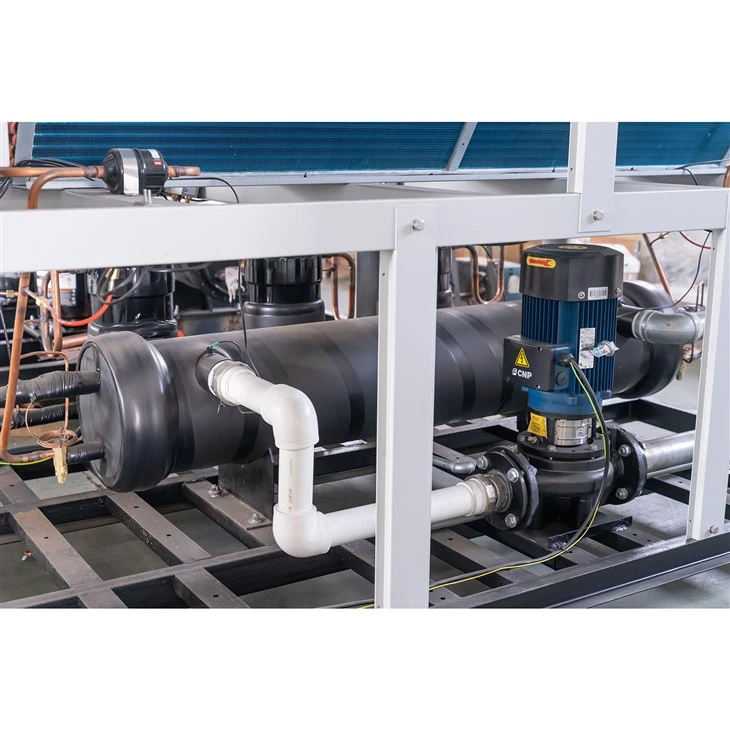

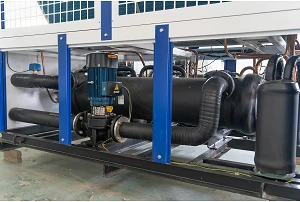

Evaporator: Shell and tube heat exchanger

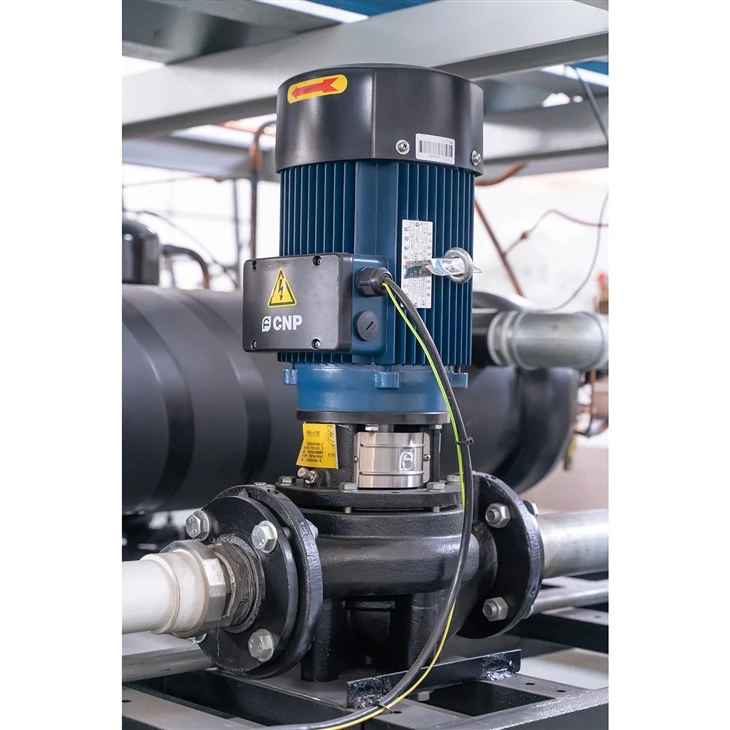

Select high-quality water pumps and high-efficiency drying filters

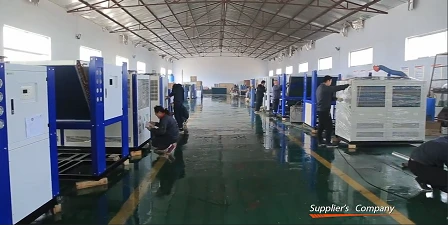

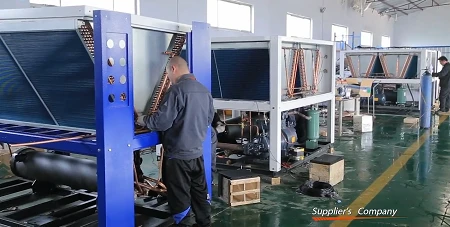

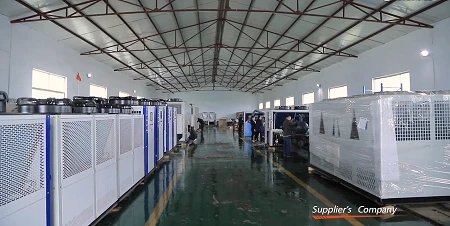

Our factory Production

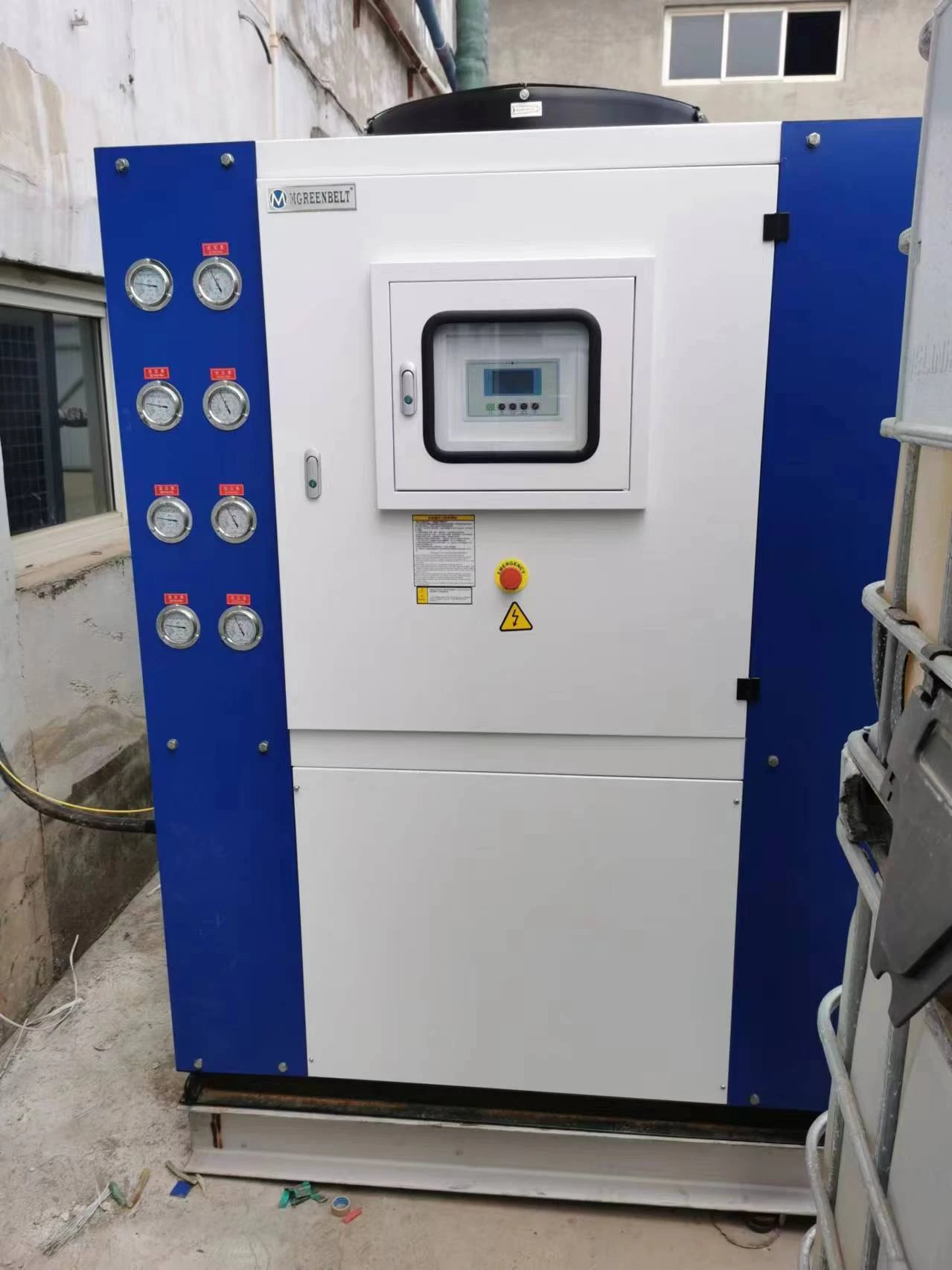

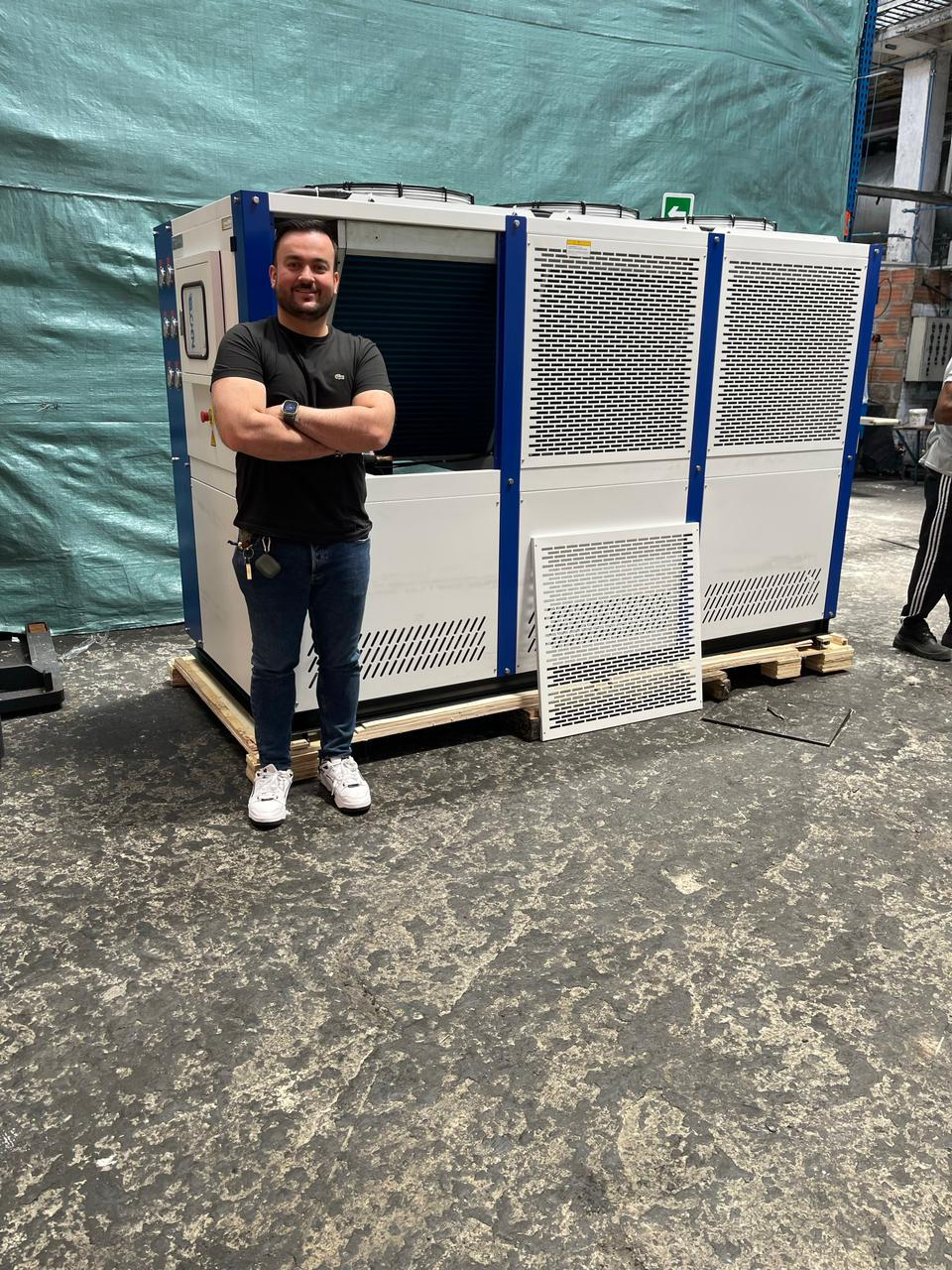

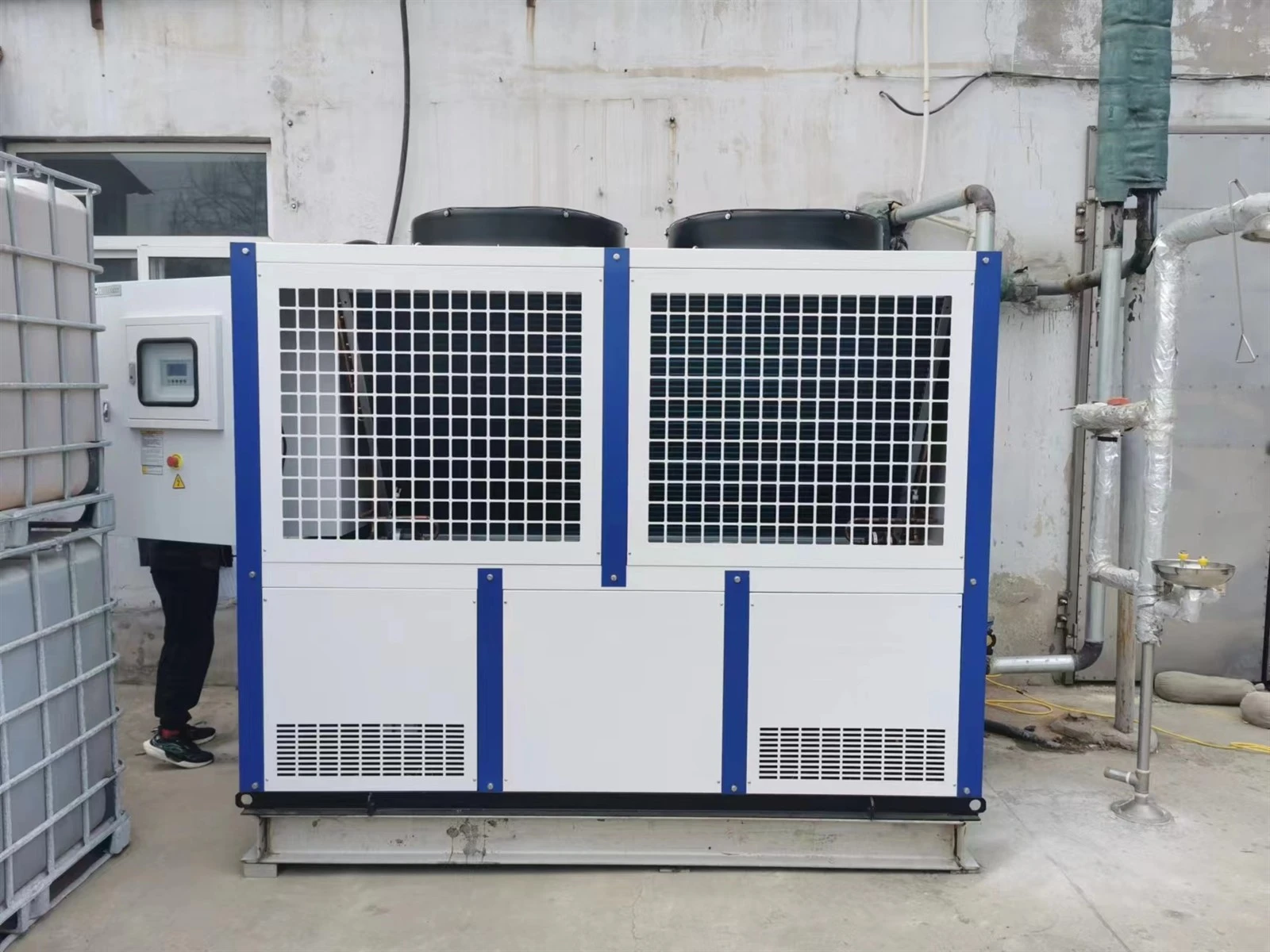

Successful projects
Chiller for Rubber Machine Cooling
Chiller for injection molding machine cooling
Chiller for Extruder cooling
Frequently Asked Questions
How does a 25-ton chiller cool a rubber machine?
The 25-ton chiller takes away heat through the refrigerant circulation, compression, condensation, throttling and evaporation, and sends the low-temperature cooling water to the rubber machine to achieve cooling.
Which rubber machines are suitable for a 25-ton chiller?
It is applicable to various rubber machines such as vulcanizing machines, internal mixers and extruders.
What are the installation requirements for a 25-ton chiller?
The 25ton chiller for rubber machine cooling should be installed in a well-ventilated and flat ground area, maintaining the surrounding space for convenient operation and maintenance, and it should be connected to a stable power supply and cooling water pipeline.
How to operate a 25-ton chiller?
Before starting, check the status of the equipment. Set parameters such as temperature and pressure as prompted on the operation panel, and start the compressor, water pump and other equipment in sequence.
How often should a 25-ton chiller be cleaned?
It is recommended to clean the dust and impurities on the surface of the condenser and evaporator once every quarter and conduct a deep cleaning of the cooling water pipes once every six months.
What are the precautions for cleaning a chiller?
When cleaning, the machine should be shut down and the power cut off first. Use a soft-bristled brush and neutral detergent to avoid damaging the equipment components. After cleaning, make sure it is dry before restarting the machine.
