Product Introduction

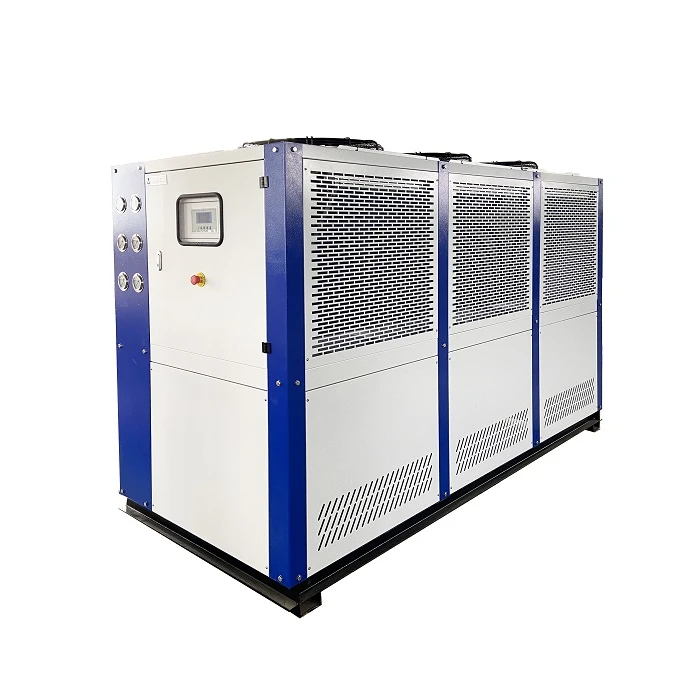

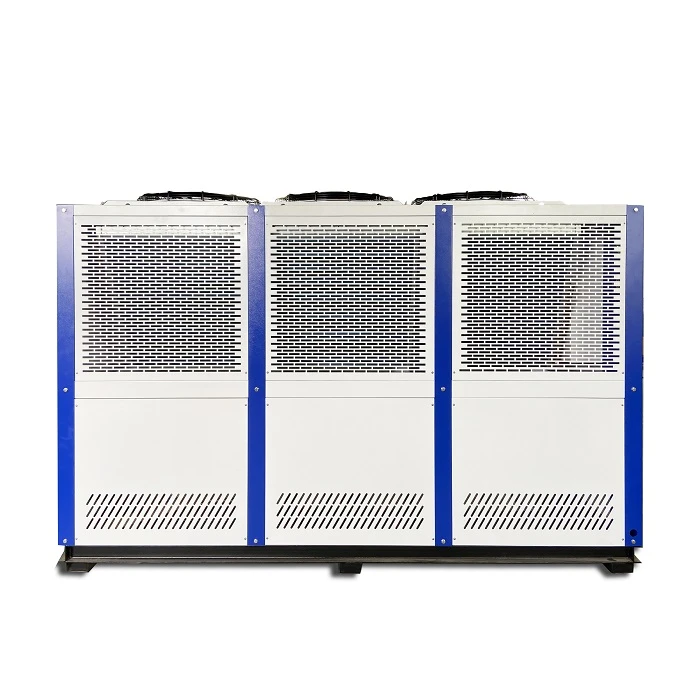

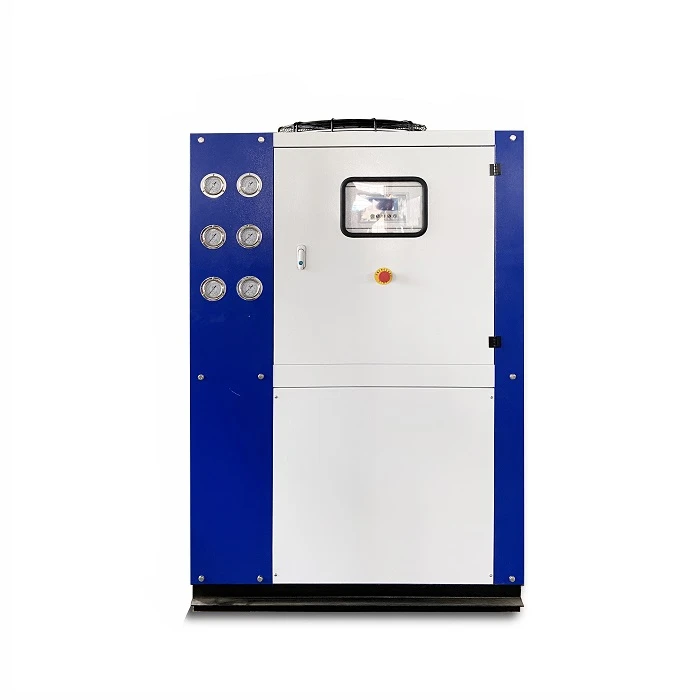

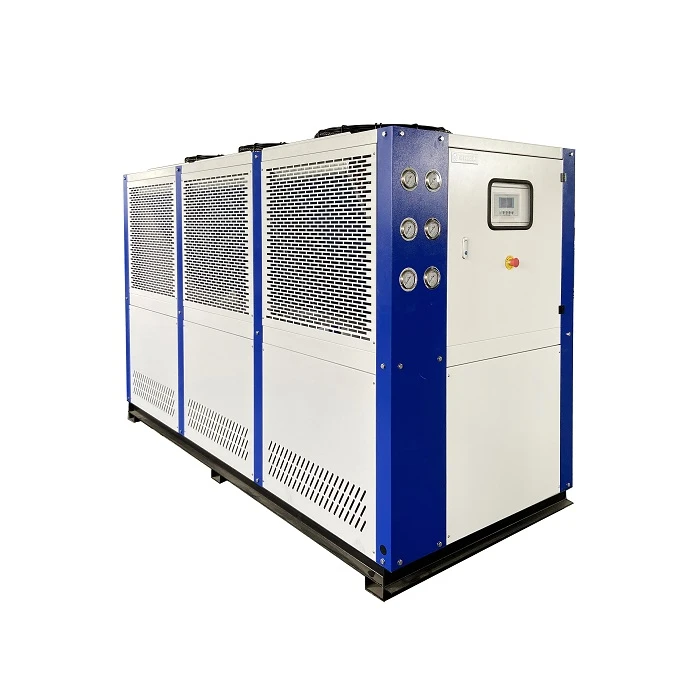

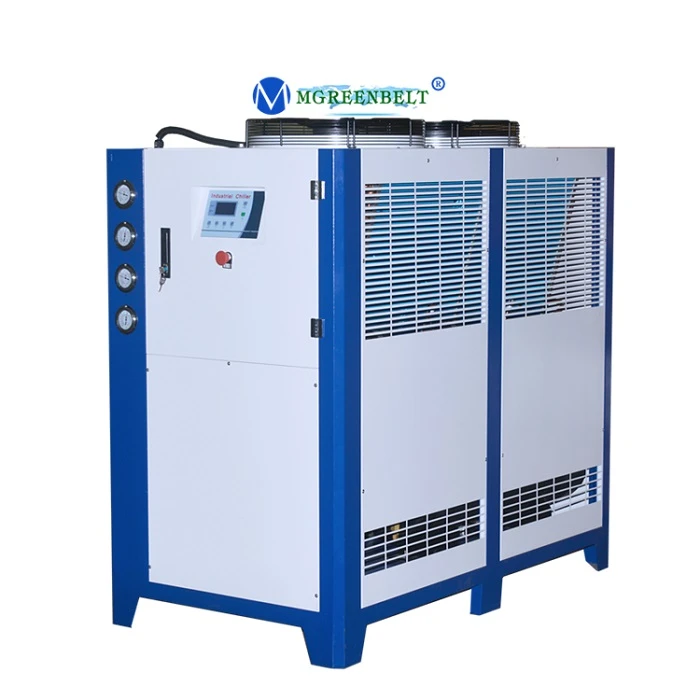

The chiller for mesh welding machine is a cooling device specially designed for mesh welding equipment. It features strong refrigeration, energy saving and high efficiency. It is widely used in mesh production and processing scenarios and can ensure the stable operation of the welding machine.
- Cooling capacity: 10hp, 12hp, 15hp ,20hp
- Water tank capacity: 200L, 275L, 360L,
- Temperature range: 7°C to 25°C
- Water flow: 5m³/h, 7 m³/h, 8 m³/h, 10 m³/h
- Pump: 1hp, 1.5hp, 2hp
- Pipe Diameter: 1'' ,1.25'' ,1.5''
Specification Sheet
|
Air cooled scroll chiller |
||||||
|
Model |
MG-10C(D) |
MG-12C(D) |
MG-15C(D) |
MG-20C(D) |
MG-25C(D) |
|
|
|
Kcal/h |
23048 |
27864 |
35948 |
47558 |
55212 |
|
kw |
26.8 |
32.4 |
41.8 |
55.3 |
64.2 |
|
| HP | 10 | 12 | 15 | 20 | 25 | |
|
Power |
kw |
9.91 |
11.51 |
13.56 |
19.63 |
24.48 |
|
Power input |
3Phase, 220V,380V,415V,440V,460V, 50HZ/60HZ |
|||||
|
Refrigerant |
Type |
R407c/R410a/R22/R134a |
||||
|
Control |
Thermostatic expansion valve |
|||||
|
Compressor |
Type |
Hermetic scroll type |
||||
|
Power(kw) |
4.1*2 |
4.9*2 |
5.36*2 |
8.13*2 |
9.79*2 |
|
|
Evaporator |
Type |
SS304 Water Tank with coil type |
||||
|
Water flow(m³/h) |
4.59 |
5.55 |
7.17 |
9.48 |
11.01 |
|
|
Capacity(L) |
200 |
200 |
275 |
360 |
360 |
|
|
Inlet/Outlet |
DN32 |
DN32 |
DN40 |
DN40 |
DN40 |
|
|
Condenser |
Type |
High efficiency hydrophilic aluminum foll finned type |
||||
|
Power(kw) |
0.58*2 |
0.58*2 |
0.57*2 |
0.937*2 |
1.7*2 |
|
|
Pump |
Type |
Centrigual or stainless steel water pump |
||||
|
Power(kw) |
0.55 |
0.55 |
1.5 |
1.5 |
1.5 |
|
|
Lift(m) |
20 |
20 |
20 |
20 |
20 |
|
|
Protection System |
Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection. |
|||||
|
Dimension |
L(mm) |
1560 |
1560 |
1800 |
2050 |
2050 |
|
W(mm) |
840 |
840 |
900 |
990 |
990 |
|
|
H(mm) |
1530 |
1530 |
1660 |
1740 |
1865 |
|
|
Wight |
kg |
450 |
500 |
750 |
850 |
900 |
Product Features
Super Large Cooling Capacity
The chiller for mesh welding machine offers multiple cooling capacities ranging from 10hp to 25hp, with a maximum of 55.3kw. It can reduce the water temperature of a 360L water tank from 25°C to 7°C within 30 minutes, rapidly cooling the welding machine and ensuring continuous operation.
Extremely Long Service Life
The evaporator adopts SS304 stainless steel water tank coil, which has a corrosion resistance three times stronger than that of ordinary steel. Combined with a high-strength hydrophilic aluminum foil finned condenser, it can operate stably for over 12 years under normal working conditions.
Precise And Constant Temperature
The chiller for mesh welding machine is equipped with high-efficiency insulation materials and a temperature control system. During 8-hour continuous operation, the water temperature fluctuation is controlled within ±0.8°C, ensuring that the welding machine does not affect the welding quality and production efficiency of the mesh due to temperature changes.
FAQ for Chiller
Q: Are you manufacturer of the machine or just a trading company?
A: We are a professional manufacturer of Chiller machine in china. Our factory located in Dezhou City, which is famous for "Chiller Hometown" in China. Our main product are Air cooled chiller, Water cooled chiller, plastic industrial chiller, and other industrial machine.
Q: Could you tell me the price of the machine?
A: We have different types, so could u tell me the specification you want: cooling capacity, outlet water temp.
Q: What is the payment terms?
A: 50％T/T in advance, 50％T/T before shipping, or 100％ etc.
Q: What's your packing way of the machine?
A: Will do the wooden case.
Q: How many days of delivery time of the machine?
A: 3P, 380V, 50HZ, 15-20 days after received your advanced payment,
Other voltages, 25-30 days after received your advanced payment.
Q: How to install the machine?
A: We will send User manual how to install the machine.
