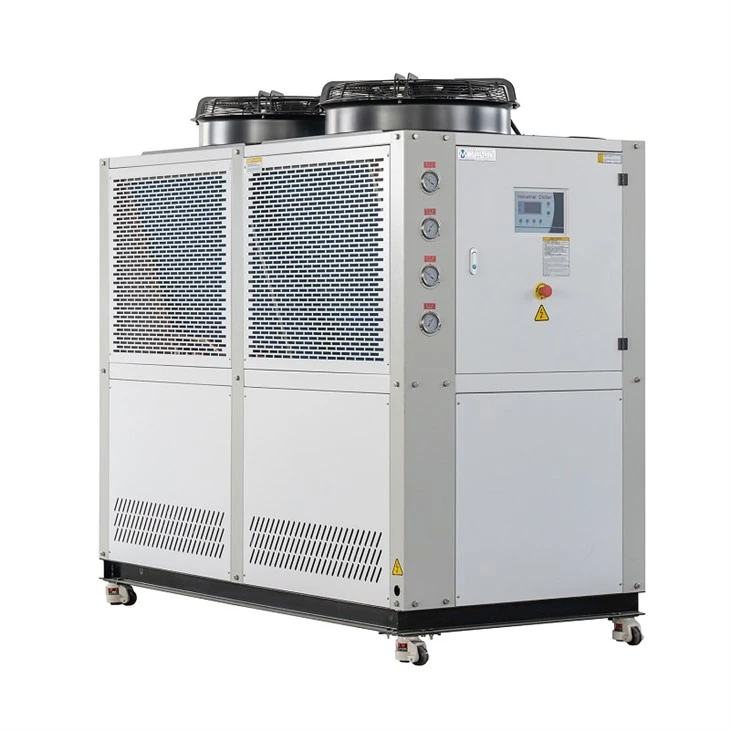

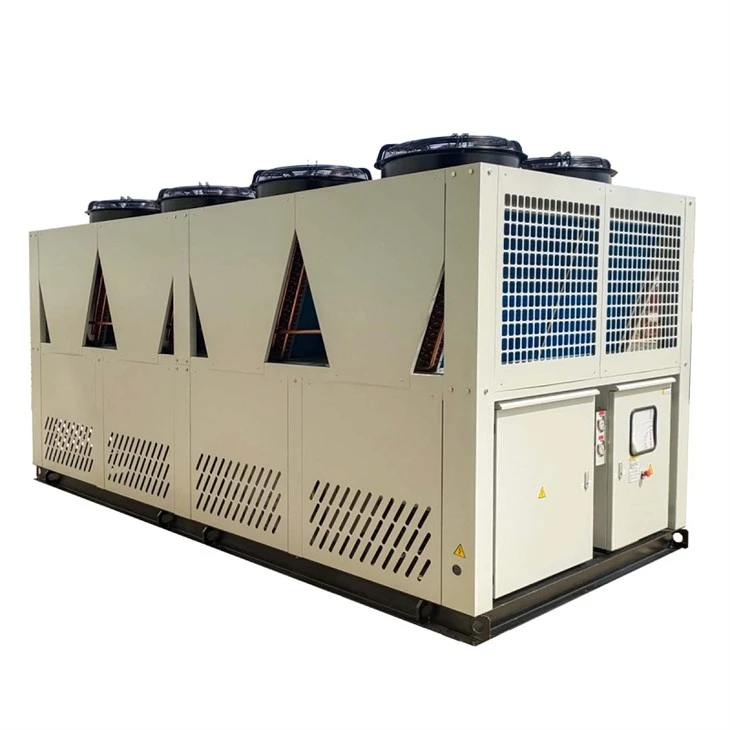

Chiller For Vacuum Coating Machine Cooling
[Classification] Special chiller for surface treatment (electroplating)
[Refrigeration capacity] 50KW (MG-15CD)
[Temperature control range] 5-30°C
[Application] All kinds of vacuum coating and other surface treatment fields, it is an ideal supporting equipment for ultra-high vacuum sputtering instrument, X-ray machine, vacuum furnace, coating machine, accelerator and other scientific instruments
[Brand name] MGREENBELT
Product Introduction
Chiller for vacuum coating machine cooling is a device that can precisely provide cooling water with constant temperature, constant flow and constant pressure. It takes away a large amount of heat generated by the vacuum coating machine during operation through the refrigeration system. It has the characteristics of high temperature control accuracy, strong refrigeration efficiency and good stability. It is widely applied in various vacuum coating scenarios such as optical coating, electronic device coating, and decorative coating.
product comparison model
| Model |
MG-12CD Water chiller
|
MG-15CD Water chiller
|
MG-20CD Water chiller
|
MG-25CD Water chiller
|
| products |
|
|
|
|
| Cooling capacity | 12HP | 15HP | 20HP | 25HP |
| Cooling capacity | 27864Kcal/H | 35948Kcal/h | 47558Kcal/h | 55212Kcal/h |
| Input power | 11.51kw | 13.56kw | 19.63kw | 24.48kw |
| Compressor Power | 9.8kw | 10.72kw | 16.26kw | 19.58kw |
| Compressor Qty | 2 sets | 2 sets | 2 sets | 2 sets |
| Water tank capacity | 200L | 275L | 360L | 360L |
| Power supply |
3Phase, 208v-220v,380v-415v,440v-480v,or 575v,600v, 50hz/60hz |
|||
| Temp control | +5 degree c~+30 degree C | |||
| refrigerant Type | R22/r407c/r410a/r134a/r404a | |||
| sizes(mm) | 1560*840*1530 | 1800*900*1660 | 2050*990*1740 | 2050*990*1865 |
| prices | $ 3580 | $ 4580 | $ 5800 | $ 6280 |
Our factory & quipment
Product Features
Strong Cooling
The maximum cooling capacity of chiller for vacuum coating machine cooling reaches 55,212 kcal /H. The dual compressors work in coordination. For example, the MG-25CD model can rapidly cool down by 15℃ within one hour, ensuring the stable operation of the coating equipment.
Precise Temperature Control
The temperature control range of the unit is 5-30° C. It adopts a PID intelligent temperature control system with a temperature control accuracy of ±0.5 °C, maintaining a stable coating environment.
High Efficiency And Energy Saving
The chiller for vacuum coating machine cooling is equipped with a high-efficiency scroll compressor with an energy efficiency ratio of 3.8. Taking the MG-15CD as an example, the input power is 13.56kw, which saves 18% energy compared with similar products.
do you have any question?
How to choose a chiller? What parameters do you need to provide?
The selection of chiller models should be based on the size of equipment heat generation and system control requirements.
The parameters required for different application fields and working conditions are also different. Please contact at +8618615589083 for consultation. Our engineers will choose the most suitable model and corresponding supporting equipment based on the parameters you provide and the actual working conditions.
What are the key configurations to judge the quality of a chiller? What is the relationship with price?
When choosing a chiller, attention should be paid to the brand and origin of the main accessories. The most crucial thing is to look at the brand, size, and origin of the compressor. The compressor is the main indicator that affects the performance of the chiller unit. Next are the evaporator and condenser, which directly affect the refrigeration efficiency of the chiller.
Of course, high configuration chillers are also expensive. When choosing a chiller, please do not blindly pursue low prices. Instead, while ensuring the performance of the chiller, choose a chiller product that suits your actual needs.
Our MGREENBELT company never does anything to reduce costs by lowering configuration and quality. We will choose the most cost-effective design solution for you to choose based on your actual needs.
Are you a manufacturer of chillers? Are your products all self-developed?
Mgreenbelt Cooling is a professional manufacturer of chillers with 20 years of industry experience. All products are independently developed according to the needs of customers and the market. If you need to use refrigeration equipment but don't know how to configure it, please trust us. We will definitely provide you with a one-stop service, designing a refrigeration solution that includes a chiller, plate heat exchanger, water pump, water tank, etc. for free, to solve your worries.
Which countries do you have offices in globally?
In today's highly developed logistics and distribution industry, in order to provide customers with the most cost-effective products, we currently do not have an office and only ship directly from the manufacturer to ensure that the chillers you purchase are the most cost-effective. We will search for the fastest and most convenient logistics for you based on your country and city. At present, our sales have spread to various countries around the world. If you need technical or after-sales repair services, we will communicate by phone and arrange professional personnel for service according to your actual situation.
