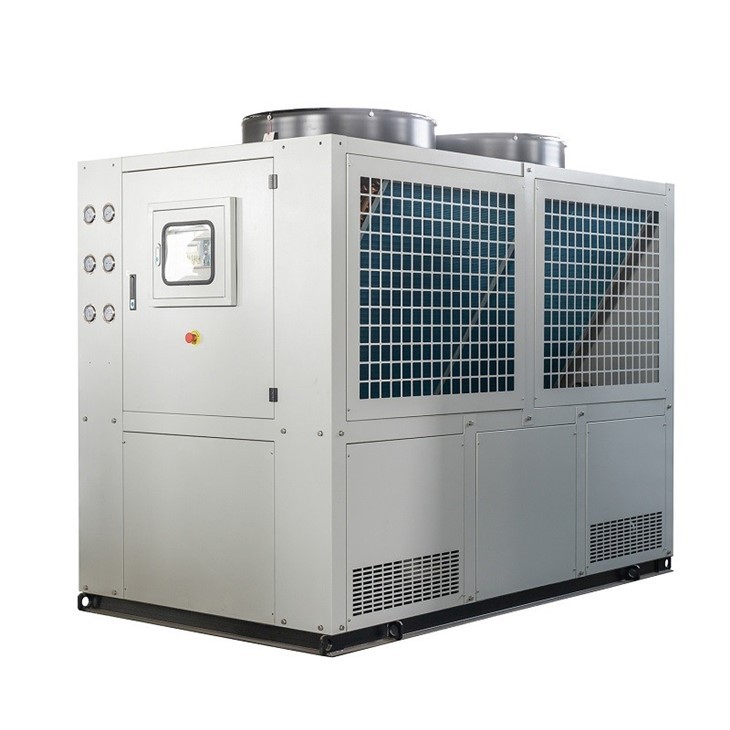

Air Cooled Glycol Water Chiller For 10bbl 20bbl Beer Brewing System
Product Introduction
The air cooled glycol water chiller for 10bbl 20bbl beer brewing system is a key equipment that uses air cooling for heat dissipation, glycol water solution as the refrigerant, and precisely regulates the brewing temperature.
Technical Data
|
products
(-5C outlet temp) |
|
|
|
|
| Model number | ZS-5C | ZS-10CD | ZS-20CD | ZS-30CD |
| cooling capacity | 9kw(5HP) | 20KW (10HP) | 40kw(20HP) | 58kw(30HP) |
| Input power | 5.4KW | 10.1KW | 20.5KW | 30.2KW |
| Power supply | 3phase-380v/415v/460v,60hz/50hz | |||
| Refrigerant | R22/r407c/r404a/r410a | |||
| Compressor brand | Japan Panasonic/USA copeland/Danmark Danfoss | |||
| Temp control | -5 degree C | |||
| pump | 0.55KW | 1.2KW | 1.5KW | 2.2KW |
Different models used for different brewery
Product Features
High-efficiency And Energy-saving Design
The air-cooled ethylene glycol chiller adopts scroll compressors, with a COP (Coefficient of Performance) of 3.8, which saves 25% energy compared to traditional piston compressors.
Food-grade 304 Stainless Steel Heat Exchanger
The core heat exchanger is made of 2mm thick 304 stainless steel through laser welding. Compared with 201 stainless steel, its corrosion resistance is 50% higher. It can withstand long-term circulation of ethylene glycol solution and has a service life of 8 to 10 years.
High-precision Temperature Control
The air cooled glycol water chiller for 10bbl 20bbl beer brewing system is equipped with a PID intelligent control system and a digital temperature control module, and the temperature fluctuation of the fermentation liquid is controlled within ±0.5℃.
Frequently Asked Questions
How does the air cooled glycol chiller for 10bbl 20bbl beer brewing system work?
The air-cooled ethylene glycol water cooler removes heat by driving air flow through a fan and uses ethylene glycol water solution as the heat transfer medium to transfer the heat of the brewing system to the air for cooling.
What preparations should be made before installing an air-cooled ethylene glycol water cooler?
Installers need to ensure that the installation space is well-ventilated, reserve maintenance access, prepare water and electricity interfaces, and check whether all equipment accessories are complete.
What are the installation steps for an air-cooled ethylene glycol water cooler?
The installers first fix the cooler, then connect the ethylene glycol pipeline and power cord, install the temperature sensor, and finally debug the operating status and parameters of the equipment.
What are the key points for the daily maintenance of air-cooled ethylene glycol water coolers?
Maintenance personnel need to regularly clean the dust on the filter screen, check for any leaks in the pipelines, monitor the concentration of ethylene glycol, and verify whether the fan is operating normally.
How often should the air-cooled ethylene glycol water cooler be cleaned?
It is recommended that maintenance personnel clean the filter screen every 2 to 4 weeks and conduct a deep cleaning and maintenance of the entire cooler every 3 to 6 months.
What are the cleaning methods for air-cooled ethylene glycol water coolers?
The cleaning staff can use a soft-bristled brush to clean the filter screen, wipe the exterior with a damp cloth, and use a special cleaner to circulate and flush the internal pipes before draining them.
